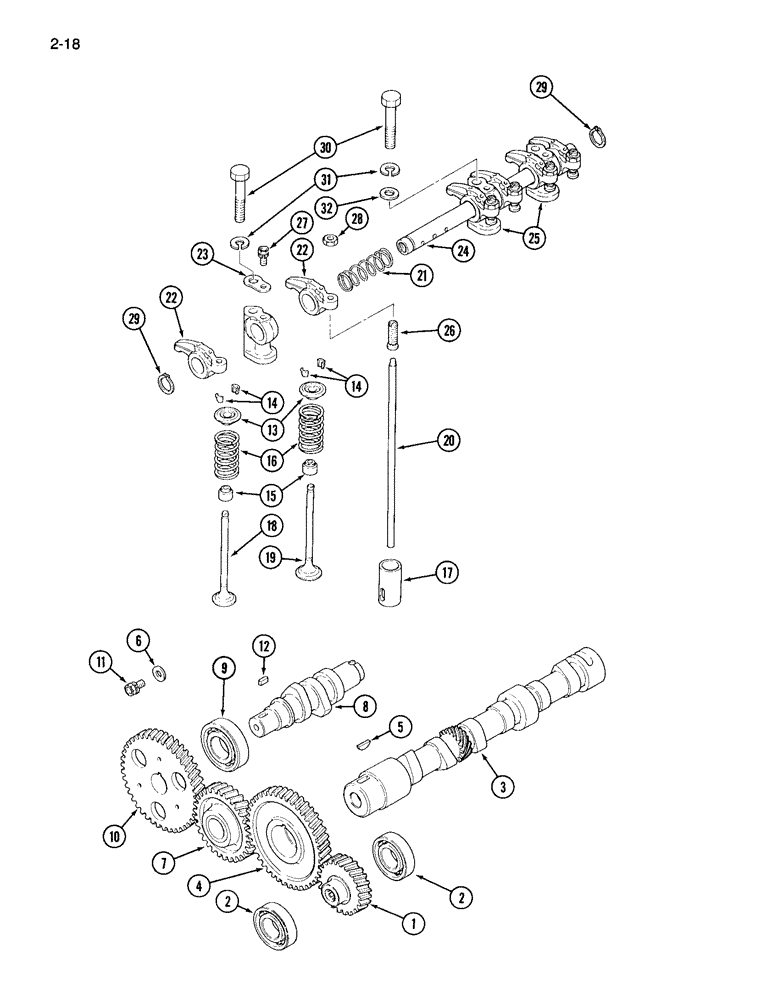

Запчасти Case IH 265 (2-18) - CAMSHAFT, VALVE MECHANISM AND GEARS (02) - ENGINE

1

1962882C1

GEAR WHEEL

GEAR - oil pump

1шт.

2

1273146C91

BEARING, BALL,25 mm ID x 52 mm OD x 15 mm

BEARING ASSEMBLY - ball

2шт.

3

1962883C1

CAMSHAFT

- engine

1шт.

4

1271973C1

GEAR WHEEL

GEAR - camshaft

1шт.

5

1271974C1

KEY

- Woodruff, 5 x 19 mm

1шт.

6

30326R1

WASHER,M8 x 17.5 x 2, HT

- flat, 9 x 17 x 2 mm

1шт.

7

1962884C1

GEAR WHEEL

GEAR ASSEMBLY - idler

1шт.

8

1271976C1

CAMSHAFT

- injection pump

1шт.

9

1273356C91

BEARING, BALL,28 mm ID x 58 mm OD x 16 mm

BEARING ASSEMBLY - ball

1шт.

10

1271977C1

GEAR WHEEL

GEAR - injection pump

1шт.

11

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

12

1271978C1

BAR

KEY - injection pump gear, 5 x 12 mm

1шт.

13

1962885C1

RETAINER

- valve spring

6шт.

14

1962886C1

LOCK ASSY

KEY - valve spring retainer lock

12шт.

15

1962787C1

SEAL

SEAL - valve stem

6шт.

16

1962888C1

VALVE SPRING

SPRING - valve

6шт.

17

1271983C1

TAPPET

- push rod

6шт.

18

1962889C1

LOCK VALVE

VALVE - intake

3шт.

19

1962890C1

LOCK VALVE

VALVE - exhaust

3шт.

20

1962891C1

ROD

- push

6шт.

21

1271987C1

VALVE SPRING

SPRING - rocker arm shaft

2шт.

22

1271988C1

ARM

- rocker

6шт.

23

1271989C1

WASHER

- seal

2шт.

24

1962892C1

SHAFT HOUSING

SHAFT ASSEMBLY - rocker

1шт.

25

1962893C1

STAY

BRACKET - rocker arm shaft

3шт.

26

1271992C1

ADJUSTMENT SCREW,M10 x 1.25 x 34mm

SCREW - adjusting

6шт.

27

980495C1

SCREW

BOLT - hex, M6 x 16 mm

2шт.

933833R1

LOCK WASHER,M6

2шт.

28

1269793C1

NUT

- lock, M10

6шт.

29

933081R1

SNAP RING,M19, Ext

RING - retaining, external, 17 mm ID

2шт.

30

1962894C1

BOLT

- hex, 65 mm long

3шт.

31

933965R1

LOCK WASHER,M10

3шт.

32

25709R1

WASHER

- flat, 11 x 21 x 2 mm

1шт.
