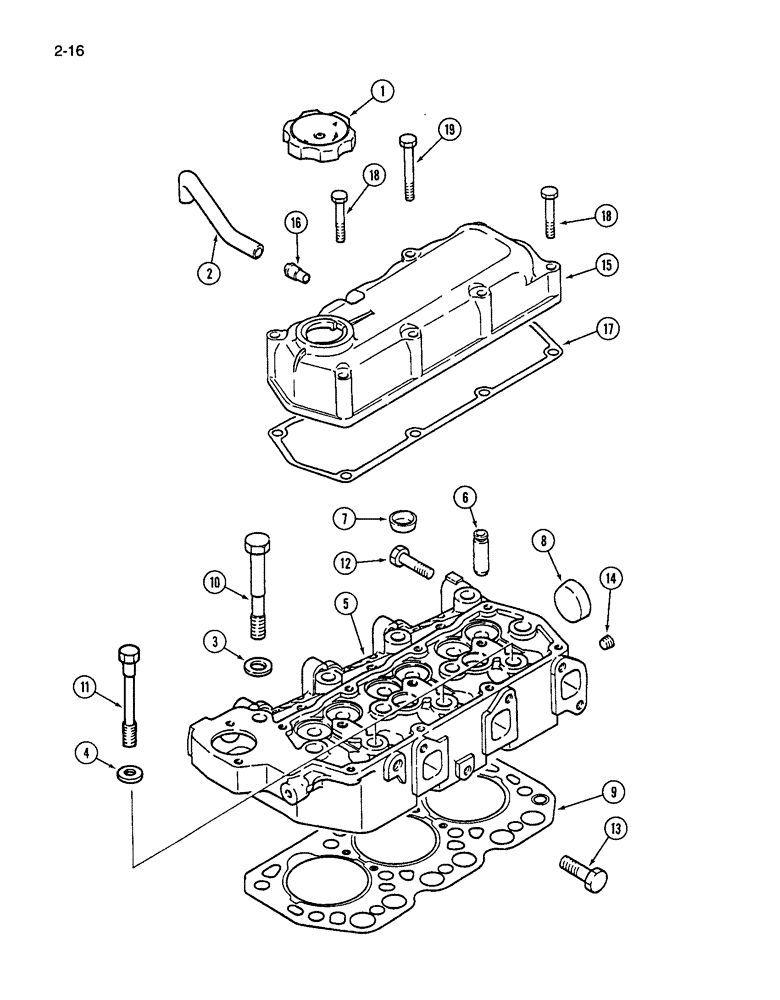

Запчасти Case IH 265 (2-16) - CYLINDER HEAD AND COVER (02) - ENGINE

1

1271914C1

CYLINDER END CAP

CAP - oil filter

1шт.

2

1962830C1

PIPE CLAMP

HOSE - breather

1шт.

3

1962831C1

WASHER

- head bolt, 26 mm OD

8шт.

4

1273354C1

WASHER

- head bolt, 23 mm OD

3шт.

5

1962832C1

HEAD ASSY.

HEAD ASSEMBLY - cylinder, Includes: Ref. 6 - 8

1шт.

6

1962834C1

GUIDE

- valve, intake and exhaust

6шт.

7

30591R1

PLUG,M25, Tapered

- tapered cup, 25 mm OD

2шт.

8

1962835C1

PLUG

- tapered cup, 40 mm OD

1шт.

9

1962788C1

CYLINDER HEAD GASKET

- cylinder head

1шт.

10

1962838C1

BOLT (SPREADER),Cylindrical Head, M14 x 1.5 x 104mm

BOLT - cylinder head, M14 x 104 mm

8шт.

11

1962839C1

BOLT (SPREADER),Cylindrical Head, M12 x 1.25 x 104mm

BOLT - cylinder head, M12 x 104 mm

3шт.

12

514-718

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

- hex, 40 mm

1шт.

13

1962840C1

BOLT (SPREADER),M12 x 40mm

BOLT - hex, 40 mm

1шт.

14

444689

PLUG,Hex Soc, 1/8"-27, Brass

- hex socket head, 1/8-27 automotive PT

1шт.

15

1962841C1

COVER ASSY

COVER ASSEMBLY - cylinder head, Includes: Ref. 16

1шт.

16

1271925C1

TUBE,7 mm ID, 10.8 mm OD, 75 mm Length

- breather hose

1шт.

17

1962790C1

GASKET

- cover

1шт.

18

30008R1

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

3шт.

19

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

5шт.
