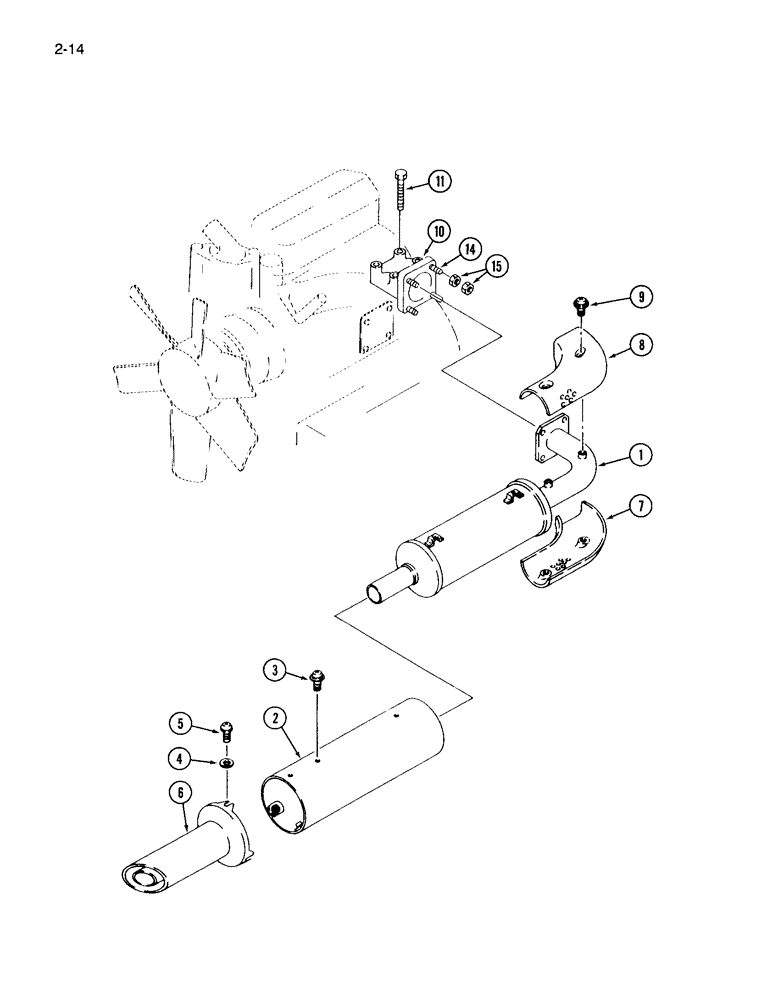

Запчасти Case IH 265 (2-14) - EXHAUST MUFFLER, HORIZONTAL (02) - ENGINE

1

1963545C1

MUFFLER

ASSEMBLY - exhaust

1шт.

2

1269757C1

HOUSING

COVER - muffler body

1шт.

3

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm

4шт.

933833R1

LOCK WASHER,M6

4шт.

933348R1

WASHER,M10 x 20 x 2

- flat, 11 x 21 x 2 mm

4шт.

4

30325R1

WASHER,M6 x 13 x 2, HT

- M6 x 13 x 2, HT

3шт.

5

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm

3шт.

933833R1

LOCK WASHER,M6

3шт.

6

1269758C1

PIPE

- exhaust, horizontal

1шт.

7

1269759C2

COVER ASSY

COVER - lower

1шт.

8

1269798C2

COVER ASSY

COVER - upper

1шт.

9

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm

4шт.

933833R1

LOCK WASHER,M6

4шт.

933348R1

WASHER,M10 x 20 x 2

- flat, 11 x 21 x 2 mm

4шт.

10

1963369C1

ELBOW

- exhaust

1шт.

11

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

4шт.

14

1273129C1

STUD

- exhaust M8 x 25 mm

4шт.

15

1282956C1

NUT

- hex, M8

8шт.
