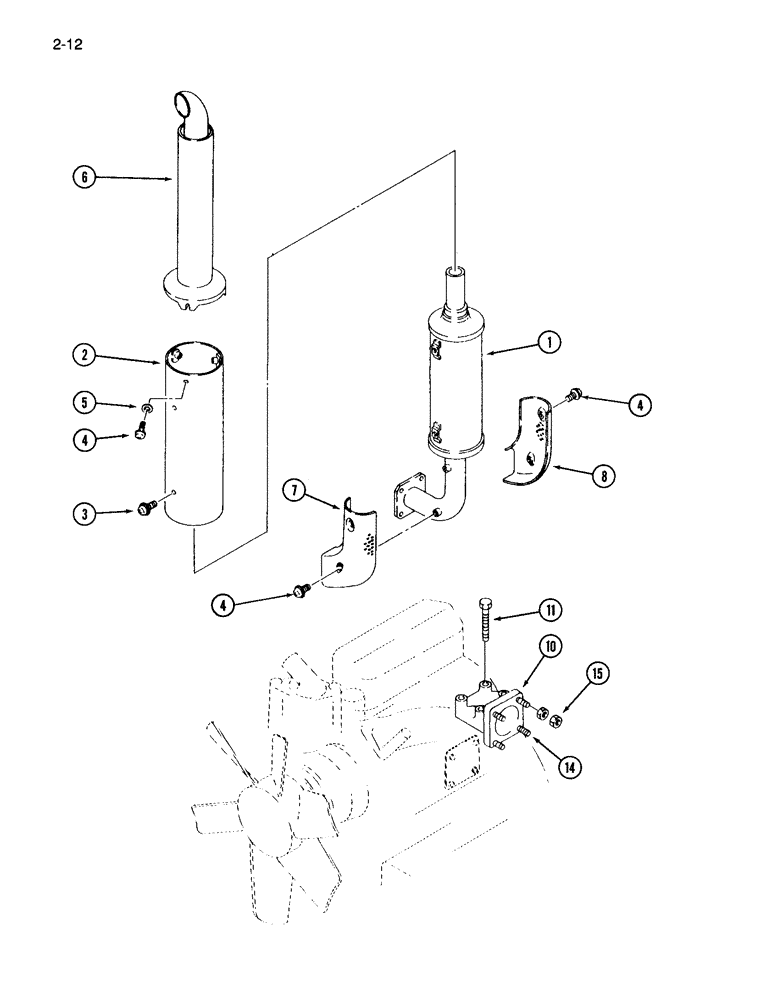

Запчасти Case IH 265 (2-12) - EXHAUST MUFFLER, VERTICAL (02) - ENGINE

1

1963545C1

MUFFLER

ASSEMBLY - exhaust, Includes: Ref. 2 - 5

1шт.

2

1269757C1

HOUSING

BODY - muffler body

1шт.

3

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm

8шт.

933833R1

LOCK WASHER,M6

8шт.

25709R1

WASHER

- flat, 10 x 21 x 2 mm

8шт.

4

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm

3шт.

933833R1

LOCK WASHER,M6

3шт.

5

30325R1

WASHER,M6 x 13 x 2, HT

- M6 x 13 x 2, HT

3шт.

6

1273016C2

PIPE

COVER - tail pipe

1шт.

7

1269759C2

COVER ASSY

COVER - front

1шт.

8

1269798C1

COVER ASSY

COVER - rear

1шт.

10

1963369C1

ELBOW

- exhaust manifold

1шт.

11

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

4шт.

14

1273129C1

STUD

- exhaust manifold 8 x 25 mm

4шт.

15

1282956C1

NUT

- hex, M8

8шт.
