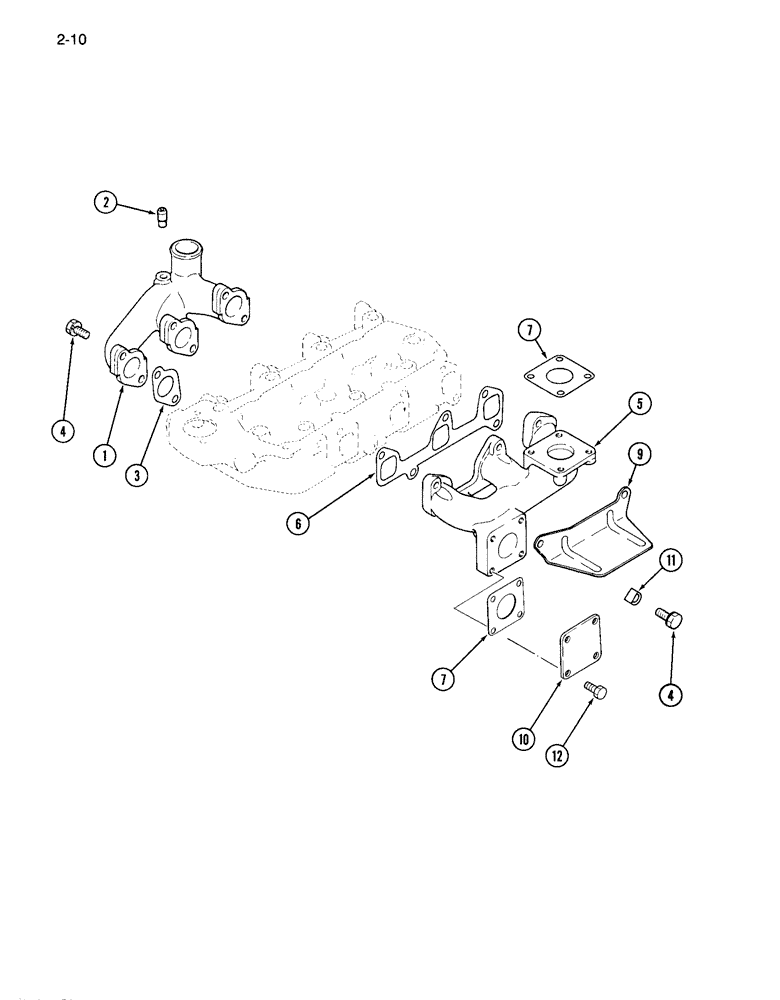

Запчасти Case IH 265 (2-10) - INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

1

1962914C1

MANIFOLD

MANIDFOLD ASSEMBLY - intake, Includes: Ref. 2

1шт.

2

1271925C1

TUBE,7 mm ID, 10.8 mm OD, 75 mm Length

FITTING - manifold

1шт.

3

1962793C1

MANIFOLD GASKET

- intake manifold

3шт.

4

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

11шт.

5

1962916C1

MANIFOLD

- exhaust

1шт.

6

1962794C1

MANIFOLD GASKET

- exhaust manifold

1шт.

7

1273105C1

GASKET

- exhaust manifold to muffler (Replaces 1273104C1)

3шт.

9

1962918C1

COVER ASSY

COVER - starter

1шт.

10

1962919C1

COVER ASSY

COVER - manifold

1шт.

11

1962780C1

CLAMP

CLIP - tachometer cable

1шт.

12

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.
