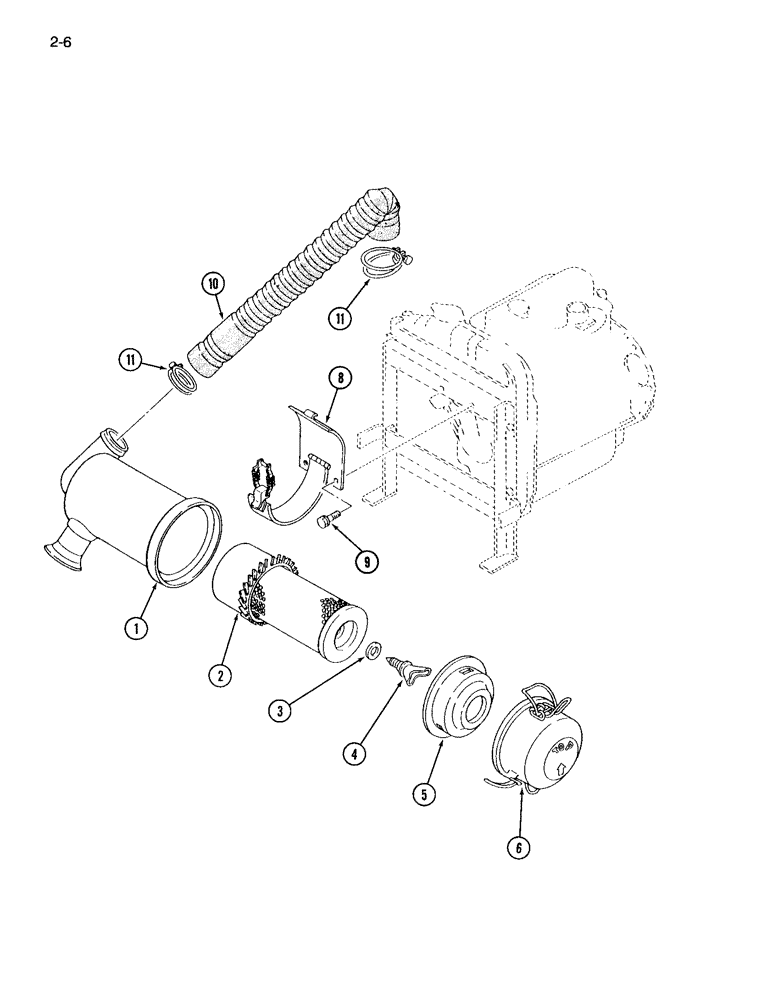

Запчасти Case IH 265 (2-06) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1

1269662C91

CLEANER ASSY.

AIR CLEANER ASSEMBLY

1шт.

BOLT & SEAL.

1шт.

AIR CLEANER ASSEMBLY. THE 265 FROM S/N CCJ0025281(NOV.89 PRODUCTION), USES 1346850C1 A/C , 1992112C1 ELEMENT & 1992127C1

1шт.

2

1273134C91

FILTER, ELEMENT

ELEMENT KIT - air cleaner

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - seal (Order 1273134C91)

1шт.

4

1269665C1

BOLT

PUMP ASSEMBLY - water, Includes: Ref. 6 - 9

1шт.

5

1269666C1

COVER ASSY

COVER - air cleaner

1шт.

6

1269667C1

COVER ASSY

COVER - air cleaner

1шт.

8

1269669C1

SUPPORT ASSY.

SUPPORT - air cleaner

1шт.

9

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

4шт.

10

99222C1

INTAKE AIR HOSE,40.00 mm ID, 50.00 mm ID x 700.00

- Air Cleaner 40.00 mm ID, 50.00 mm ID x 700.00

1шт.

11

27725R1

HOSE CLAMP,#36, 1.81/2.75 Type F Worm, W/liner

CLAMP - hose

2шт.
