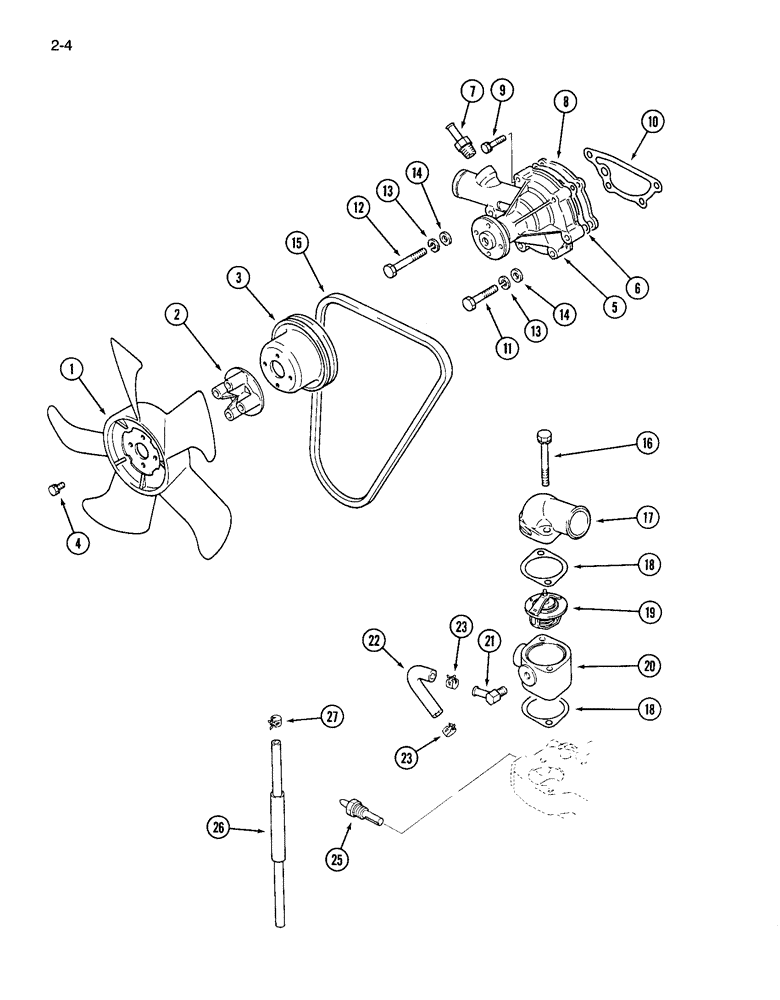

Запчасти Case IH 265 (2-04) - WATER PUMP (02) - ENGINE

1

1962910C1

FAN

- cooling

1шт.

2

1962911C1

SPACER

- fan

1шт.

3

1273084C1

PULLEY

- water pump

1шт.

4

30198R1

BOLT,Hex, M6 x 1 x 45mm, Cl 10.9

- hex, M6 x 45 mm, Grade 10.9

4шт.

933833R1

LOCK WASHER,M6

4шт.

5

1962912C1

PUMP

ASSEMBLY - water

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - water pump

1шт.

7

1273096C1

FITTING

- hose, nipple, straight, 3/8 PT

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - water pump

1шт.

9

30195R1

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9

- hex, M6 x 30 mm

2шт.

933833R1

LOCK WASHER,M6

2шт.

10

1273086C1

GASKET

- water, Serial Range: pump-block

1шт.

11

30007R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

- hex, M8 x 45 mm

3шт.

12

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

13

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

14

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

4шт.

15

1962770C1

BELT,10.70 mm, L

V-BELT , Fan 10.70 mm, L

1шт.

16

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

2шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

17

1273099C1

ELBOW UNION

HOUSING - thermostat

1шт.

18

1273088C1

GASKET

- thermostat housing

2шт.

19

1273091C1

THERMOSTAT

- coolant, 180deg.F (82 Deg.C)

1шт.

20

1273098C1

HOUSING

- thermostat

1шт.

21

1273090C1

ELBOW UNION

FITTING - water outlet

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - water bypass, 5-9/32 inch (150 mm) long (Order B90923 and, Serial Range: cut-length)

1шт.

23

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose

2шт.

25

1273102C1

SWITCH

SENDER - engine coolant temperature

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE - water drain, 15-3/4 inch (400 mm) long (Order B90922 and, Serial Range: cut-length)

1шт.

27

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose

1шт.

B90923

HOSE,0.31" ID x 50.00' Bulk, SAE 30R2 Type 1

0.31" ID x 50.00' Bulk, SAE 30R2 Type 1

1шт.

B90922

HOSE,0.25" ID x 50.00' Bulk, SAE 30R2 Type 1

0.25" ID x 50.00' Bulk, SAE 30R2 Type 1

1шт.
