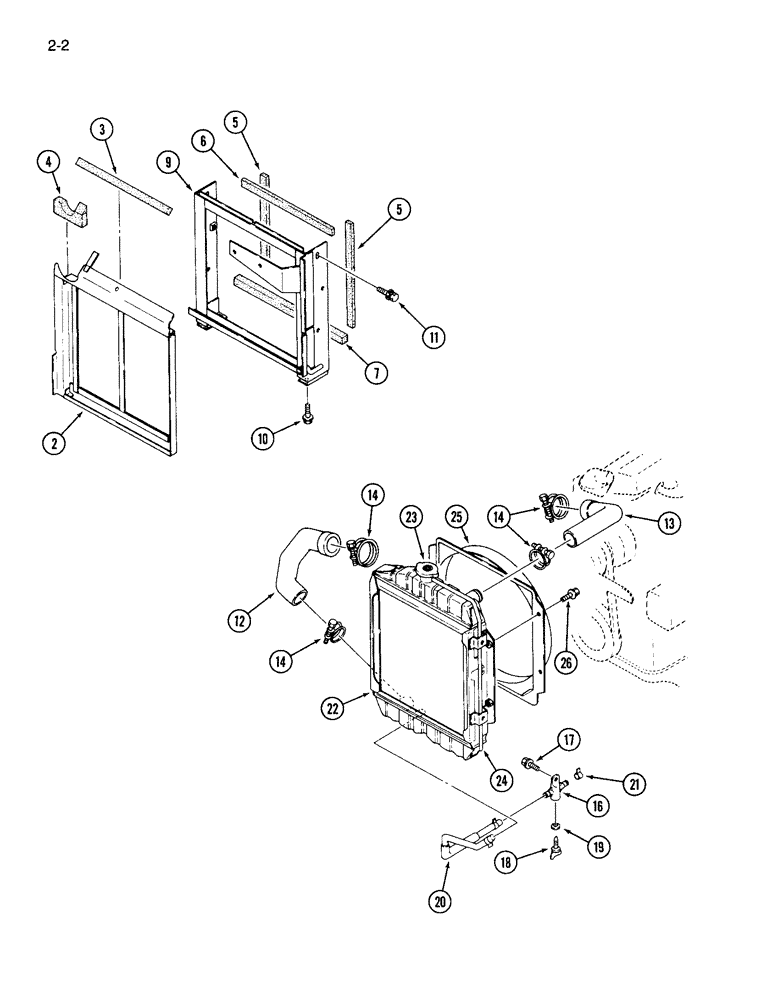

Запчасти Case IH 265 (2-02) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

2

1963373C1

SCREEN

- radiator

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - radiator screen, 12-1/2 inch (315 mm) long (Order 73220C1 and, Serial Range: cut-length)

1шт.

4

99221C1

SEAL ASSY.

SEAL - radiator screen

1шт.

5

99216C2

CUSHION ASSY.

SEAL - radiator sealing sides 12-3/4 inch (325 mm) long (Order 99164C1 (420 mm) and, Serial Range: cut-length)

2шт.

6

99217C1

SEAL - radiator sealing top 15-5/32 inch (385 mm) long (Order 99164C1 (420 mm) and, Serial Range: cut-length)

1шт.

7

99218C1

SEAL ASSY.

SEAL - radiator sealing bottom 15-5/32 inch (385mm) long (Order 1961818C1 (385 mm) and, Serial Range: cut-length)

1шт.

9

99215C2

BRACKET

- radiator

1шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

4шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

4шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

4шт.

12

1963544C1

HOSE

- radiator, lower

1шт.

13

1962545C1

RADIATOR HOSE,32.00 mm, 35.00 mm ID x 169.00 mm

Upper 32.00 mm, 35.00 mm ID x 169.00 mm

1шт.

14

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

16

1269622C1

TEE

- radiator drain

1шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

1шт.

18

1275078C1

LOCK VALVE

Valve - drain cock

1шт.

19

1275077C1

GASKET

- drain cock

1шт.

20

NSS

NOT SOLD SEPARAT

PIPE - radiator drain, 10-5/8 inch (270 mm) (Order B90923 and, Serial Range: cut-length)

1шт.

21

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP - hose

3шт.

22

1963370C1

RADIATOR

ASSEMBLY - engine

1шт.

23

1269639C1

CAP

- radiator

1шт.

24

NSS

NOT SOLD SEPARAT

TUBE - overflow, 23-5/8 inch (600 mm) long (Order B90923 and, Serial Range: cut-length)

1шт.

25

1963371C1

SHROUD

- fan

1шт.

26

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

933833R1

LOCK WASHER,M6

4шт.

446179

WASHER,#12

- flat, 6 x 12 x 2 mm

4шт.
