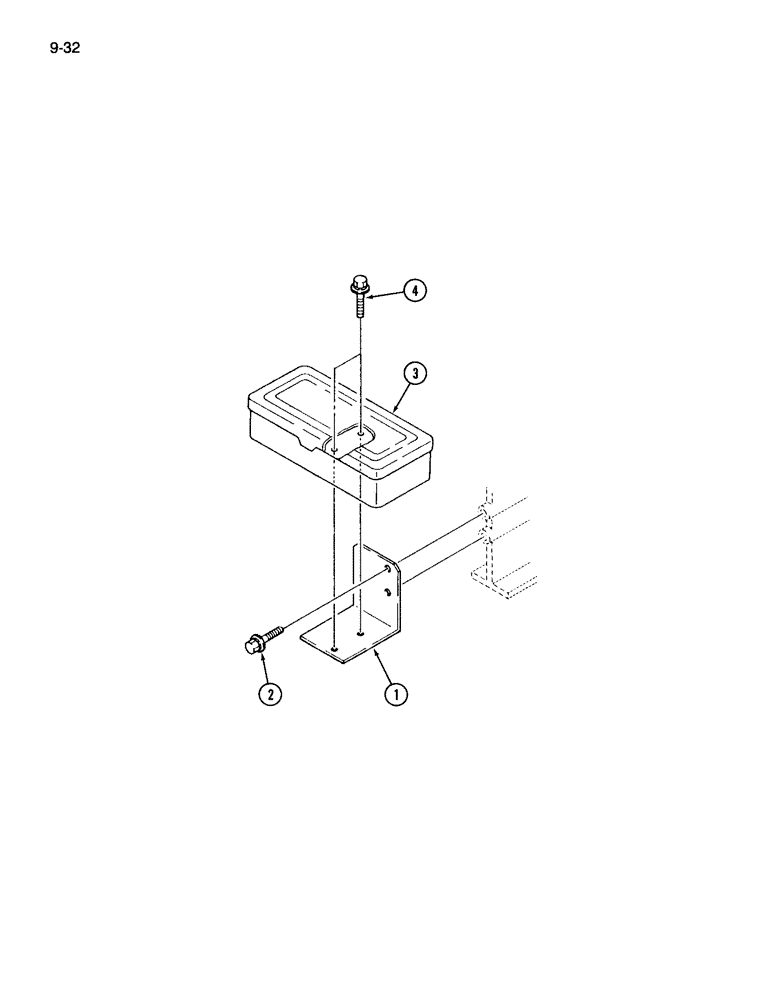

Запчасти Case IH 265 (9-32) - TOOLBOX (09) - CHASSIS/ATTACHMENTS

1

1963342C1

BRACKET

- toolbox mounting

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

2шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

2шт.

3

1269728C1

BOX

- tool

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

2шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

985-15008

WASHER - flat, 9 x 21 x 2 mm

2шт.
