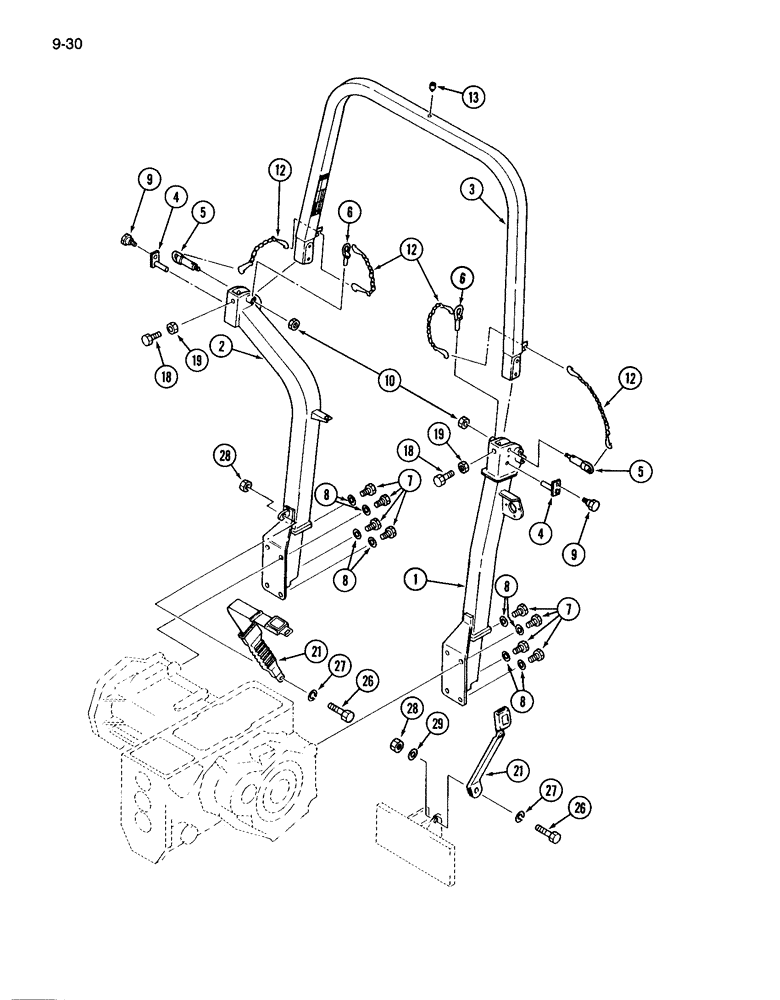

Запчасти Case IH 265 (9-30) - ROPS FRAME (09) - CHASSIS/ATTACHMENTS

1963535C1

ROOF

FRAME ASSEMBLY - ROPS, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

PILLAR ASSEMBLY - frame, left

1шт.

2

NSS

NOT SOLD SEPARAT

PILLAR ASSEMBLY - frame, right

1шт.

3

NSS

NOT SOLD SEPARAT

BAR - roll

1шт.

4

99341C1

PIVOT PIN

PIN - hinge

2шт.

5

99342C1

PIN

- threaded

2шт.

6

99343C1

PIN

- klik

2шт.

7

827-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd

- hex, M14 x 35 mm, Grade 10.9

8шт.

8

30408R1

WASHER,M12 x 28.5 x 3, HT

- flat, hardened, 15 mm ID

8шт.

9

1962705C1

BOLT

- hex, 16 mm long

2шт.

10

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12 x 1.25 mm

2шт.

12

99346C1

CHAIN (AG)

CHAIN - link

4шт.

13

1962694C1

PLUG

- roll bar

1шт.

NSS

NOT SOLD SEPARAT

PLATE, ROPS, model

1шт.

NSS

NOT SOLD SEPARAT

RIVET - model plate

2шт.

18

1963125C1

BOLT (SPREADER),M16 - 1.5 x 49mm

BOLT - special, ROPS locking

2шт.

19

1269797C1

TUBE NUT

NUT - hex, jam, M16

2шт.

21

1963538C1

SAFETY BELT

SAFETY BELT, Includes Ref. 26 - 29

1шт.

26

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

2шт.

27

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

28

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

29

195-529

WASHER,7/16", SAE

- flat, 12 x 23 x 2 mm

1шт.
