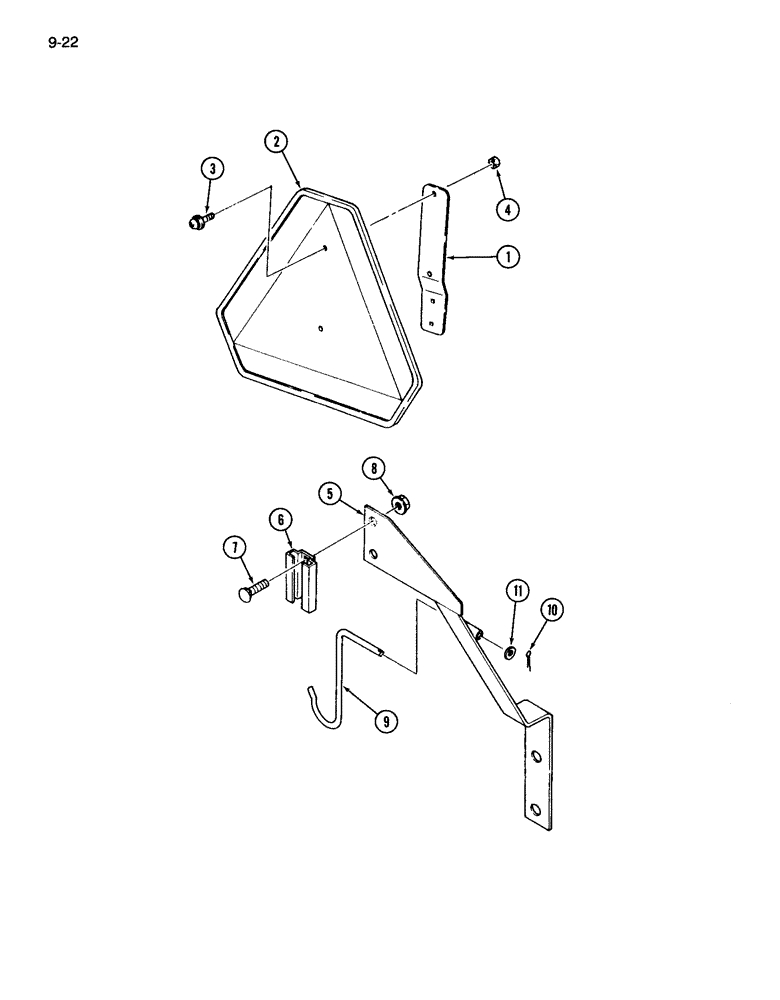

Запчасти Case IH 265 (9-22) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

1

99303C1

LARGE PLATE

BRACKET - SMV emblem mounting

1шт.

2

99304C1

WARNING SIGN

DECAL - SMV emblem

1шт.

3

30192R1

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, M6 x 16 mm

2шт.

933833R1

LOCK WASHER,M6

2шт.

4

31109R1

NUT,M6 x 1, Flg, Cl 8

- hex, flange, M6 Grade 10

2шт.

5

1963492C1

BRACKET

- SMV emblem socket, mounting

1шт.

6

398976R1

BRACKET

- socket, SMV emblem, mounting

1шт.

7

30473R1

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 16mm, Cl 8.8

BOLT - round head, square neck, M8 x 16 mm

2шт.

8

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

9

1963334C1

HOOK

RETAINER - hook, top link

1шт.

10

30285R1

PIN - cotter, 2.5 x 12 mm

1шт.

11

446179

WASHER,#12

- flat, 6 x 12 x 2 mm

1шт.
