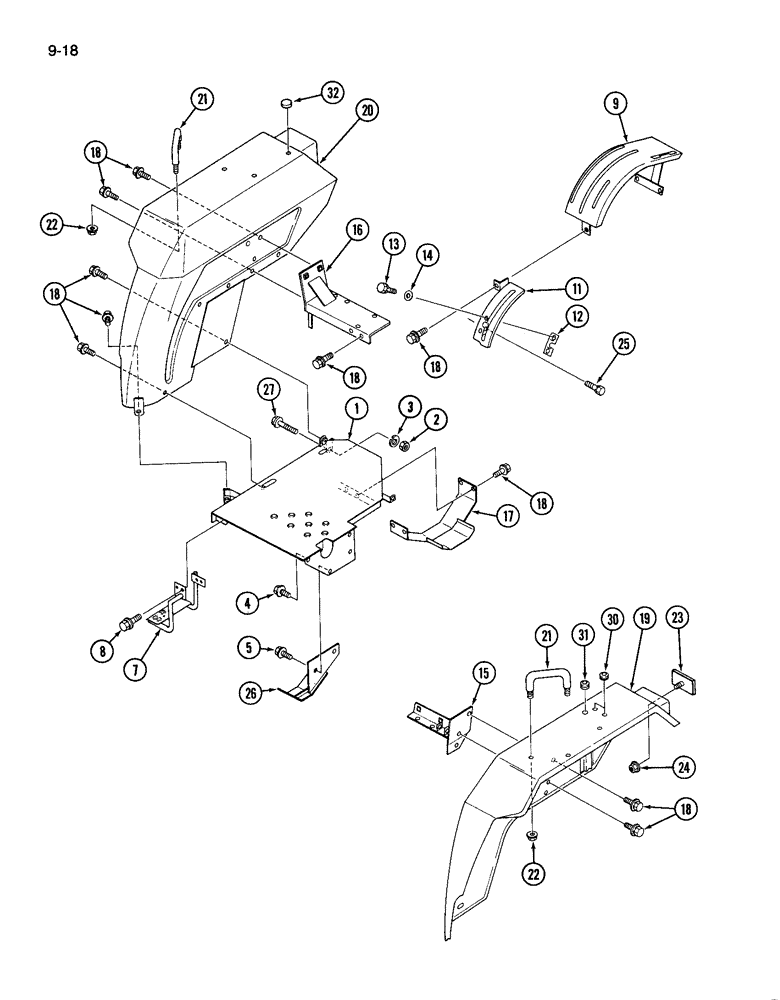

Запчасти Case IH 265 (9-18) - FENDERS, STEPS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

1963524C1

ROLL

PLATFORM - step

1шт.

2

30169R1

NUT,M12 x 1.75, Cl 10

- hex, M12 Grade 10

1шт.

3

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

4

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

2шт.

933965R1

LOCK WASHER,M10

2шт.

5

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

7

1963533C1

STEP

- mounting (Use with 20, 24 and 28 inch rear tire)

1шт.

7

1963525C1

STEP

- mounting (Use with 36 inch rear tire)

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

4шт.

9

1963526C1

GUIDE

- hydraulic control lever

1шт.

11

1963527C1

GUIDE

- range control lever

1шт.

12

1282580C1

GUIDE

- neutral

1шт.

13

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

933833R1

LOCK WASHER,M6

2шт.

14

30325R1

WASHER,M6 x 13 x 2, HT

- M6 x 13 x 2, HT

2шт.

15

1963528C1

BRACKET

- fender, left

1шт.

16

1963529C1

BRACKET

- fender, right

1шт.

17

1963530C1

COVER

- under, step platform

1шт.

18

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

20шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

20шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

20шт.

19

1963531C1

FENDER

- rear, left

1шт.

20

1963532C1

FENDER

- rear, right

1шт.

21

1269683C1

HANDLE

- fender

2шт.

22

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

4шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

4шт.

23

1271744C1

REFLECTOR

- red

2шт.

24

825-1106

NUT,Hex, M6, Cl 8

- hex, M6

2шт.

933833R1

LOCK WASHER,M6

2шт.

446179

WASHER,#12

- flat, 6 x 12 x 2 mm

2шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

26

1963534C1

COVER

- brake rod

1шт.

27

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

- hex, M12 x 70 mm

1шт.

30

1963547C1

GROMMET

- plug, 15 mm OD

2шт.

31

1963548C1

GROMMET

- plug, 20 mm OD

1шт.

32

1963549C1

GROMMET

- plug, 13 mm OD

1шт.
