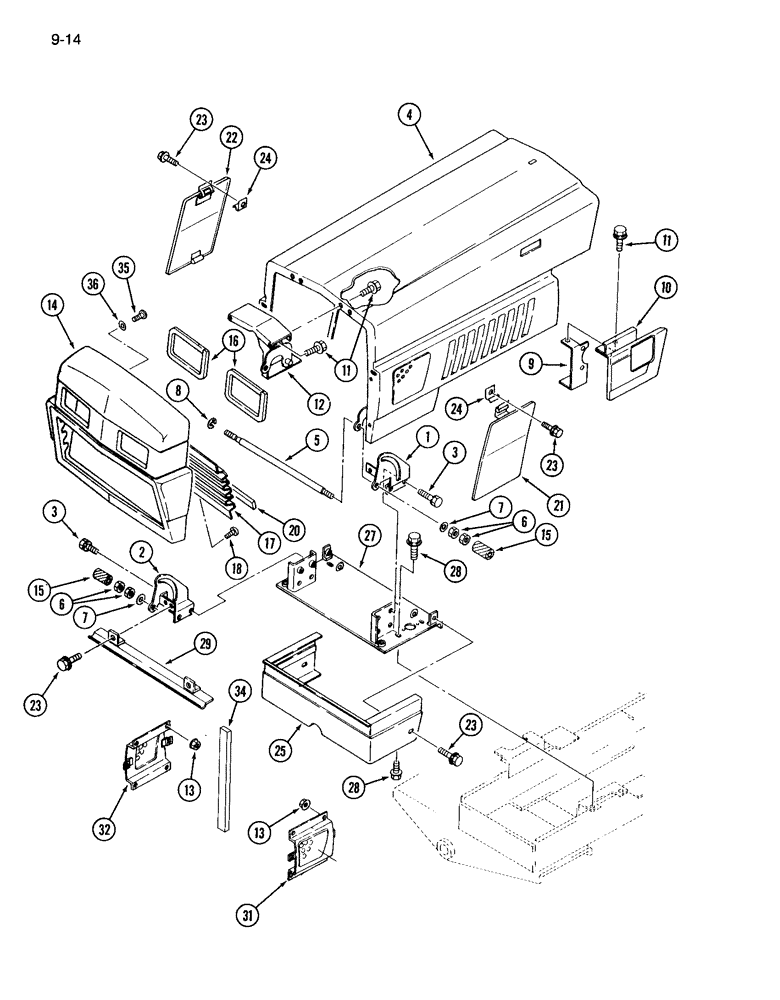

Запчасти Case IH 265 (9-14) - HOOD, PANELS, GRILLE AND SUPPORTS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
99150C1
BRACKET
WEIGHT ATTACHMENT - front (Machinery item), Includes: Ref. 1 - 3
1шт.
2
99151C1
BRACKET
- hinge right
1шт.
3
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
- hex, M8 x 20 mm
4шт.
4
99255C1
HOOD
- tractor
1шт.
5
99259C1
BAR
ROD - hood pivot
1шт.
6
1269793C1
NUT
- hex, jam, M10
4шт.
7
25709R1
WASHER
- flat, 11 x 21 x 2 mm
2шт.
8
1271817C1
CIRCLIP,M9
RING - retaining
2шт.
9
1963474C1
BRACKET
- rear side cover
1шт.
10
1963473C1
COVER
- rear side
1шт.
11
614-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
10шт.
933833R1
LOCK WASHER,M6
10шт.
446179
WASHER,#12
- flat, 6 x 12 x 2 mm
10шт.
12
99162C1
BRACKET
- hood
1шт.
13
825-1106
NUT,Hex, M6, Cl 8
- hex, M6, Grade 10
12шт.
933833R1
LOCK WASHER,M6
12шт.
14
99166C1
GRILLE
HOUSING - grille
1шт.
15
99260C1
CUSHION ASSY.
CUSHION - hood pivot
2шт.
16
99164C1
CUSHION ASSY.
CUSHION - head lamp
2шт.
17
99163C1
SCREEN
- grille
1шт.
18
1273616C1
SELF-TAP SCREW,Phil, M5 x 16mm
SCREW - tapping, M5 x 16 mm
7шт.
20
99165C1
CUSHION ASSY.
CUSHION - grille screen
1шт.
21
1963476C1
COVER
- side, left
1шт.
22
1963477C1
COVER
- side, right
1шт.
23
814-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
- hex, M8 x 16 mm
8шт.
934309R1
LOCK WASHER,M8
WASHER - lock, 8 mm
8шт.
934675R1
WASHER,M8 x 16 x 1.6
- flat, 9 x 17 x 2 mm
8шт.
24
1962581C1
VALVE SPRING
SPRING - side cover
2шт.
25
99264C1
SCREEN
COVER - front
1шт.
27
1963478C1
BRACKET
- battery
1шт.
28
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
- hex, M8 x 20 mm
3шт.
934309R1
LOCK WASHER,M8
WASHER - lock, 8 mm
3шт.
934675R1
WASHER,M8 x 16 x 1.6
- flat, 9 x 17 x 2 mm
3шт.
29
99171C1
COVER ASSY
COVER - hinge bracket
1шт.
31
1962578C1
COVER ASSY
COVER - left
1шт.
32
1962579C1
COVER ASSY
COVER - right
1шт.
34
1962720C1
CUSHION ASSY.
CUSHION - side cover
2шт.
35
1962722C1
SELF-TAP SCREW
SCREW - tapping, M5 x 8 mm
2шт.
Выбрано товаров: 39
