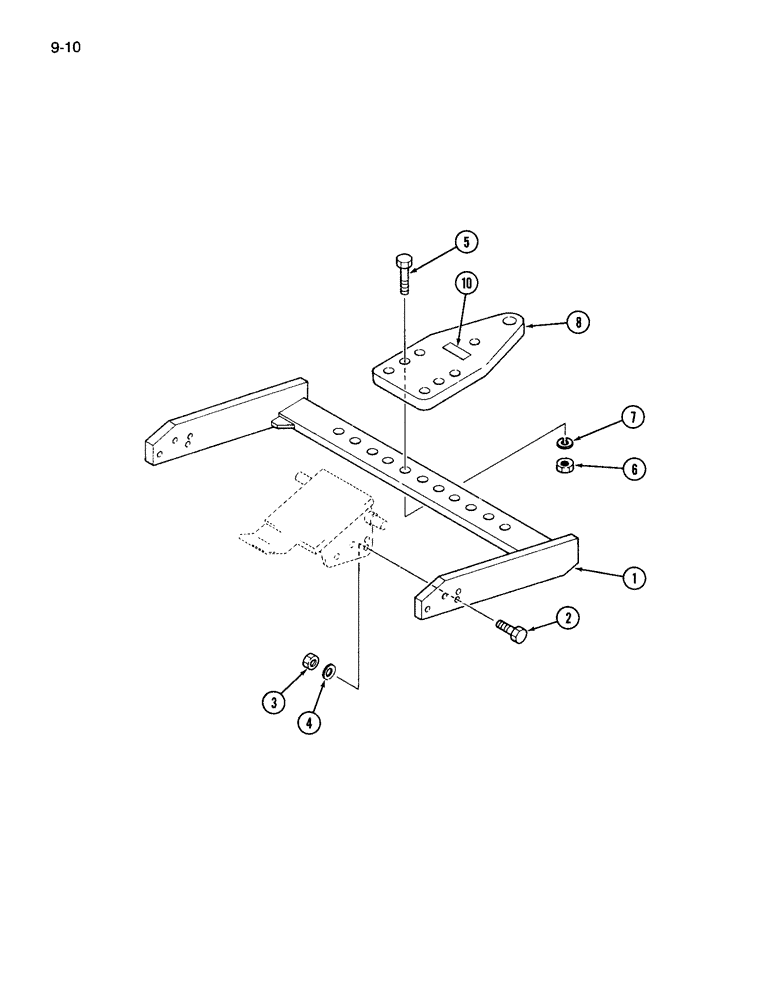

Запчасти Case IH 265 (9-10) - DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

1963359C1

DRAWBAR

- towing

1шт.

2

514-847

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

- hex, M12 x 50 mm

8шт.

3

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12

8шт.

4

30328R1

WASHER,M13.5 x 24.5 x 3, HT

- flat, 14 x 24 x 3 mm

8шт.

5

514-1210

BOLT,Hex, M20 x 1.5 x 70mm, Cl 8.8, Full Thd

- hex, M20 x 70 mm

2шт.

6

525-5116

NUT,M20 x 1.5, Cl 8

- hex, M20

2шт.

7

892-1120

LOCK WASHER,M20

WASHER - lock, 20 mm

2шт.

8

1963276C1

PLATE

ASSEMBLY - drawbar towing, Includes: Ref. 10

1шт.

NSS

NOT SOLD SEPARAT

PLATE - drawbar towing

1шт.

10

1963361C1

DECAL

- drawbar load

1шт.
