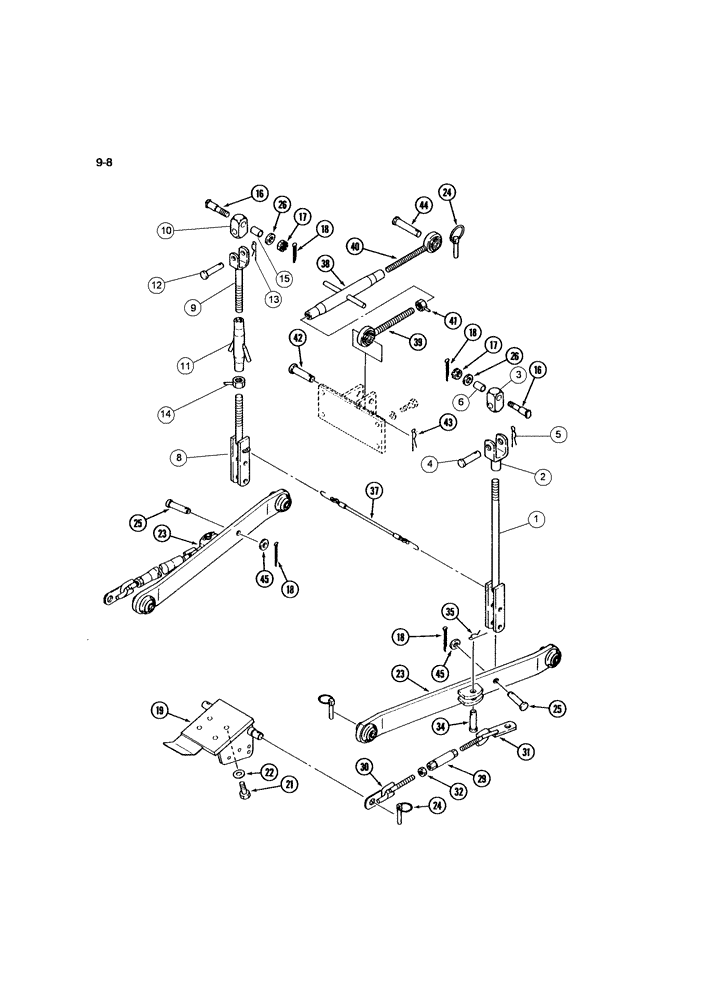

Запчасти Case IH 265 (9-08) - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1963497C1
ROD
Lift, Left, Use With 24 And 28 Inch Rear Tires
1шт.
1963500C1
ROD
Lift, Left, Use With 36 Inch Rear Tires
1шт.
1
1963504C1
ROD
Lift, Lower, Left, Use With 24 And 28 Inch Rear Tires
1шт.
1
1963506C1
ROD
Lift, Lower, Left, Use With 36 Inch Rear Tires
1шт.
2
1273317C1
YOKE
UNIVERSAL JOINT YOKE Lift Link, Upper Left
1шт.
3
1963336C1
BOSS
Lift, Rod
1шт.
4
1273311C1
AXLE PIN
1шт.
5
153528C1
COTTER PIN
1шт.
6
1963592C1
COLLAR
Lift Rod Swivel
1шт.
1963498C1
ROD
Lift, Right, Use With 24 And 28 Inch Rear Tires
1шт.
1963501C1
ROD
Lift, Right, Use With 36 Inch Rear Tires
1шт.
8
1963505C1
ROD
Lift, Lower, Right
1шт.
9
1963507C1
ROD
Lift, Upper, Right, Use With 24 And 28 Inch Rear Tires
1шт.
9
1963508C1
ROD
Lift, Upper, Right, Use With 36 Inch Rear Tires
1шт.
10
1963336C1
BOSS
Lift, Rod
1шт.
11
1963260C1
TURNBUCKLE
Lift Adjust, Right
1шт.
12
1273311C1
AXLE PIN
1шт.
13
153528C1
COTTER PIN
1шт.
14
1273315C1
NUT
1шт.
15
1963592C1
COLLAR
Lift Rod Swivel
1шт.
16
1963337C1
PIN
PIN - lift arm
2шт.
17
1271877C1
NUT
NUT - castle, M16
2шт.
18
934532R1
COTTER PIN,M4 x 32
PIN - cotter, 4 x 32 mm
4шт.
19
1963502C1
BRACKET
SPARE PART BRACKET - lower link left
1шт.
19
1963503C1
BRACKET
SPARE PART BRACKET - lower link right
1шт.
21
827-14045
BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd
BOLT - hex, M14 x 45
8шт.
22
30408R1
WASHER,M12 x 28.5 x 3, HT
WASHER - flat, 15 x 28 x 3 mm
8шт.
23
1963509C1
LINK
SPARE PART LINK - lower
2шт.
24
372907R91
LINCH PIN
PIN - klik
7шт.
25
21957R1
HEADED PIN,5/8" x 2"
PIN - headed, 5/8 x 2 inch
2шт.
26
933571R1
WASHER,M14 x 28 x 2.5
WASHER - flat, 15 x 28 x 3 mm
2шт.
NSS
NOT SOLD SEPARAT
CHAIN ASSEMBLY - anti-sway, Includes: Ref. 29 - 32
2шт.
29
1963510C1
TURNBUCKLE
TURNBUCKLE - anti-sway adjust
1шт.
30
1962407C1
CHAIN (AG)
CHAIN - anti-sway
1шт.
31
1962408C1
CHAIN (AG)
CHAIN - nati-sway
1шт.
32
525-5105
NUT,M14 x 1.5, Cl 8
NUT - hex, M14
1шт.
34
1963251C1
PIN
SPARE PART PIN - clevis
2шт.
35
1269737C1
AXLE PIN
PIN - hair
2шт.
37
1273313C1
STRAP
STRAP - retaining, upper link
1шт.
1962633C1
DRAG LINK
LINK ASSEMBLY - upper, Includes: Ref. 38 - 41
1шт.
38
1273308C1
TURNBUCKLE
TURNBUCKLE - upper link
1шт.
39
1273306C1
ADJUSTER
ROD - upper link
1шт.
40
1273307C1
ADJUSTER
ROD - upper link
1шт.
41
1273316C1
LOCK NUT
NUT - lock, upper link
1шт.
42
1273155C1
AXLE PIN
PIN - clevis, upper link
1шт.
43
1273156C1
AXLE PIN
PIN - hair
1шт.
44
1273157C2
PIN
clevis, upper link
1шт.
45
80299
WASHER,0.69" ID x 1.75" OD x 0.13" Thk
WASHER - flat, 17 x 30 x 3 mm
2шт.
Выбрано товаров: 48
