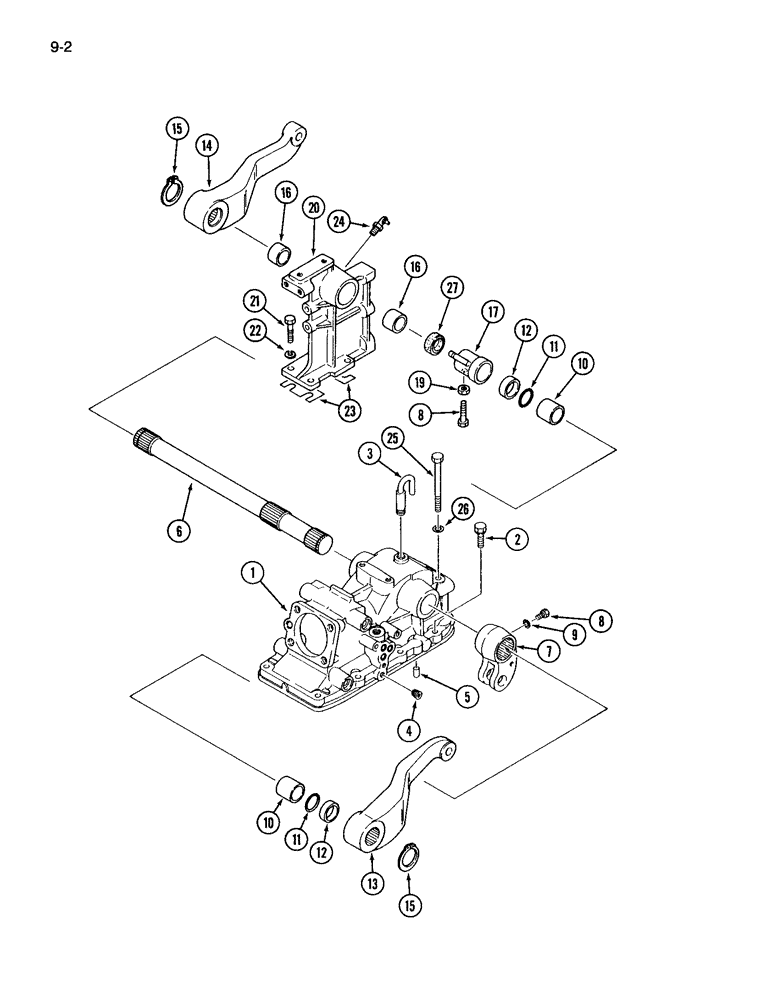

Запчасти Case IH 265 (9-02) - HITCH SYSTEM, HOUSING, ROCKSHAFT AND LIFT ARMS (09) - CHASSIS/ATTACHMENTS

1

1269860C1

CASE

HOUSING - rockshaft

1шт.

2

514-713

BOLT,Hex, M10 x 1.25 x 45mm, Cl 5.6

- hex, M10 x 45 mm

8шт.

933965R1

LOCK WASHER,M10

8шт.

3

1269861C1

VENTILATION PIPE,10.5 mm Diameter, 50, 37 mm Length

TUBE - vent pipe

1шт.

4

444692

PLUG,Hex Soc, 1/4"-18

- hex, socket head, 1/4-18 automatic pipe

4шт.

5

30346R1

DOWEL,M10 x 20

PIN - dowel, hardened, 10 x 20 mm

2шт.

6

1963445C1

SHAFT

ROCKSHAFT - hitch

1шт.

7

1269863C1

ARM

- power

1шт.

8

1269864C1

STEP BOLT,Hex, M8 x 1.25 x 23.50mm

BOLT - special

2шт.

9

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

10

1269865C1

BUSHING

- rockshaft

2шт.

11

1269894C1

O-RING

O-RING - rockshaft

2шт.

12

1269866C1

SPACER

- lift arm

2шт.

13

1963446C1

ARM

- lift, left

1шт.

14

1963447C1

ARM

- lift, right

1шт.

15

933075R1

SNAP RING,M40, Ext

RING - retaining, external, 36 mm ID

2шт.

16

1963317C1

BUSHING

- rockshaft support

2шт.

17

1963448C1

ARM

- rockshaft support

1шт.

19

825-1108

NUT,Hex, M8, Cl 8

- hex M8

1шт.

20

1963449C1

SUPPORT

- rockshaft

1шт.

21

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

22

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

4шт.

23

1963320C1

SHIM KIT

SHIM - set, rockshaft support

1шт.

24

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease

1шт.

25

514-727

BOLT,Hex, M10 x 1.25 x 130mm, Cl 8.8

- hex, M10 x 130 mm

2шт.

26

933965R1

LOCK WASHER,M10

2шт.

27

1282609C1

OIL SEAL

SEAL - oil

1шт.
