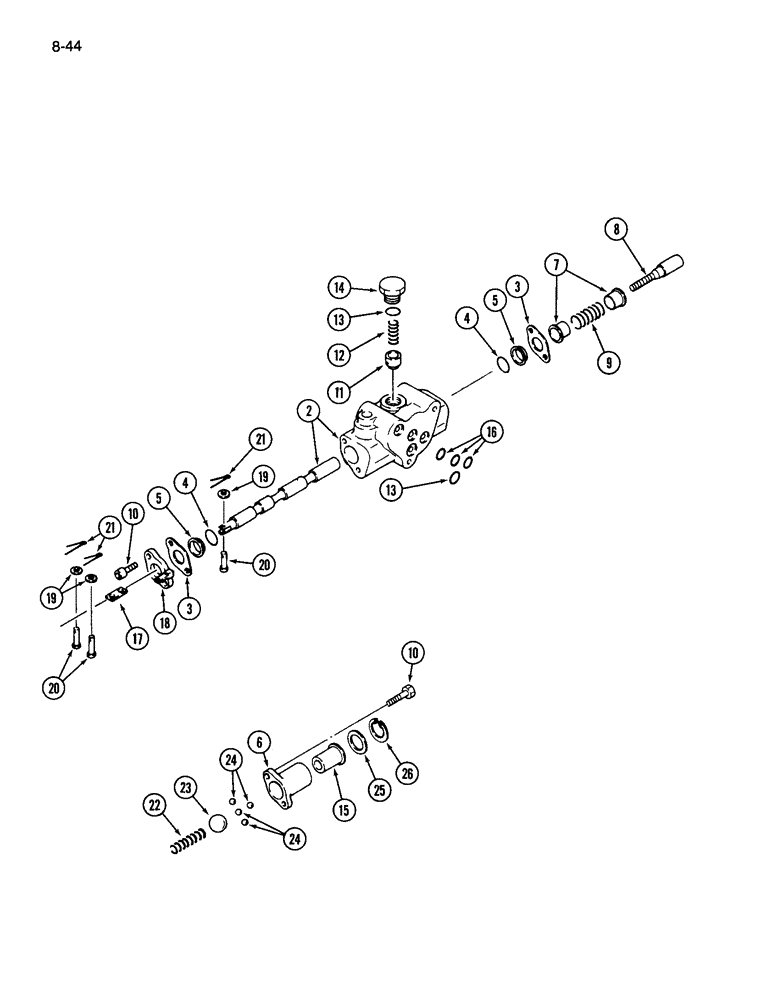

Запчасти Case IH 265 (8-44) - MID HYDRAULIC LIFT CONTROL VALVE (08) - HYDRAULICS

1963210C1

VALVE

- hydraulic control, Includes: Ref. 2 - 26

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - valve seal

2шт.

4

NSS

NOT SOLD SEPARAT

O-RING - valve

2шт.

Part of valve repair kit P/N 1963235C1

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - valve spool

2шт.

Part of valve repair kit P/N 1963235C1

1шт.

6

NSS

NOT SOLD SEPARAT

CAP - valve end

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

8

NSS

NOT SOLD SEPARAT

PIN - spring

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

10

NSS

NOT SOLD SEPARAT

BOLT - bracket and cap

4шт.

11

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - plug

2шт.

Part of valve repair kit P/N 1963235C1

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - valve body

3шт.

Part of valve repair kit P/N 1963235C1

1шт.

17

1963591C1

LINK

- valve actuating

1шт.

18

NSS

NOT SOLD SEPARAT

BRACKET - valve end

1шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

3шт.

20

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

3шт.

21

30242R1

COTTER PIN,M1.2 x 10

PIN - cotter

3шт.

22

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

23

NSS

NOT SOLD SEPARAT

BALL - steel, stainless

1шт.

24

NSS

NOT SOLD SEPARAT

BALL - steel, stainless

4шт.

25

NSS

NOT SOLD SEPARAT

SPACER - valve end cap

1шт.

26

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

1963235C1

SEAL

KIT - valve repair, Includes: Ref. 4, 5, 13 and 16

1шт.
