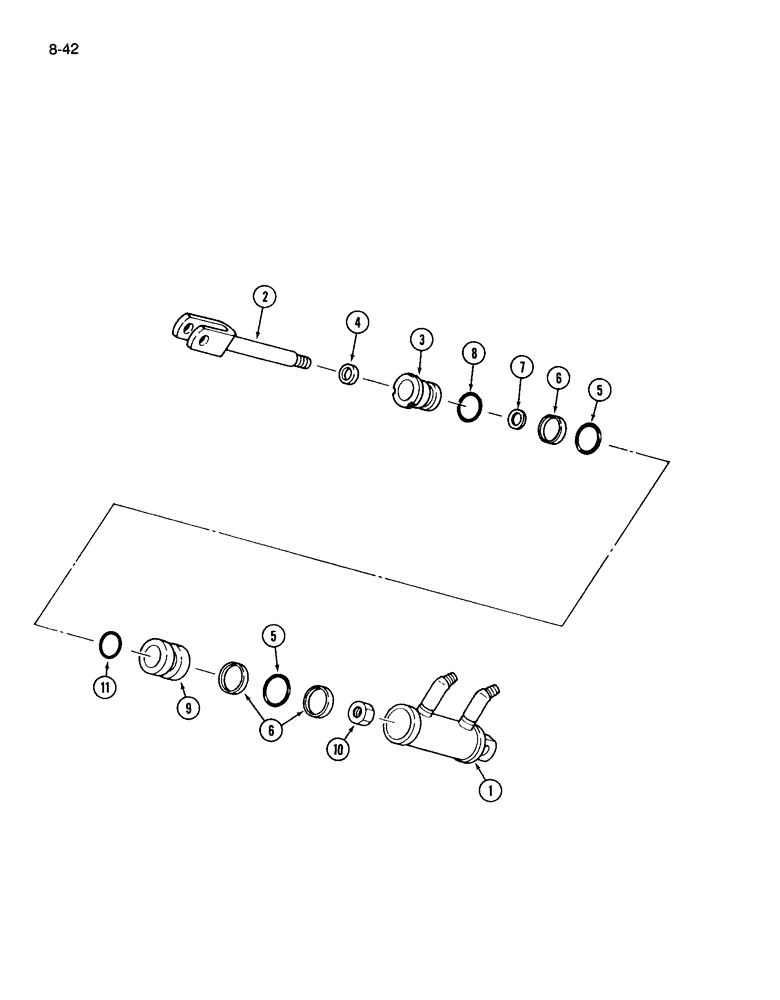

Запчасти Case IH 265 (8-42) - MID HYDRAULIC LIFT CYLINDER (08) - HYDRAULICS

1963223C1

CYLINDER

ASSEMBLY - hydraulic lift, Includes: Ref. 1 - 9

1шт.

Replaced by 1346833C1 at P.I.N. CCJ0025281 and above. refer to prior page for parts breakdown. See service bulletin EBTSB03094. Parts are not interchangeable, use new with new and old with old

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY - cylinder

1шт.

2

1963225C1

PISTON ROD

ROD ASSEMBLY - piston

1шт.

3

1963226C1

CASE

GLAND - cylinder packing

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.

Part of cylinder repair kit P/N 1963228C1

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - piston and gland

2шт.

Part of cylinder repair kit P/N 1963228C1

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup

3шт.

Part of cylinder repair kit P/N 1963228C1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - u-packing

1шт.

Part of cylinder repair kit P/N 1963228C1

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - packing gland

1шт.

Part of cylinder repair kit P/N 1963228C1

1шт.

9

1963227C1

PISTON

- cylinder

1шт.

10

525-5109

NUT,M16 x 1.5, Cl 8

- hex, M16, Includes: Ref. 11

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of cylinder repair kit P/N 1963228C1

1шт.

1963228C1

SEAL

KIT - cylinder repair, Includes: Ref. 4, 5, 6, 7, 8 and 11

1шт.
