Запчасти Case IH 255 (9-06) - DRAWBAR AND PTO SHIELD (09) - CHASSIS/ATTACHMENTS

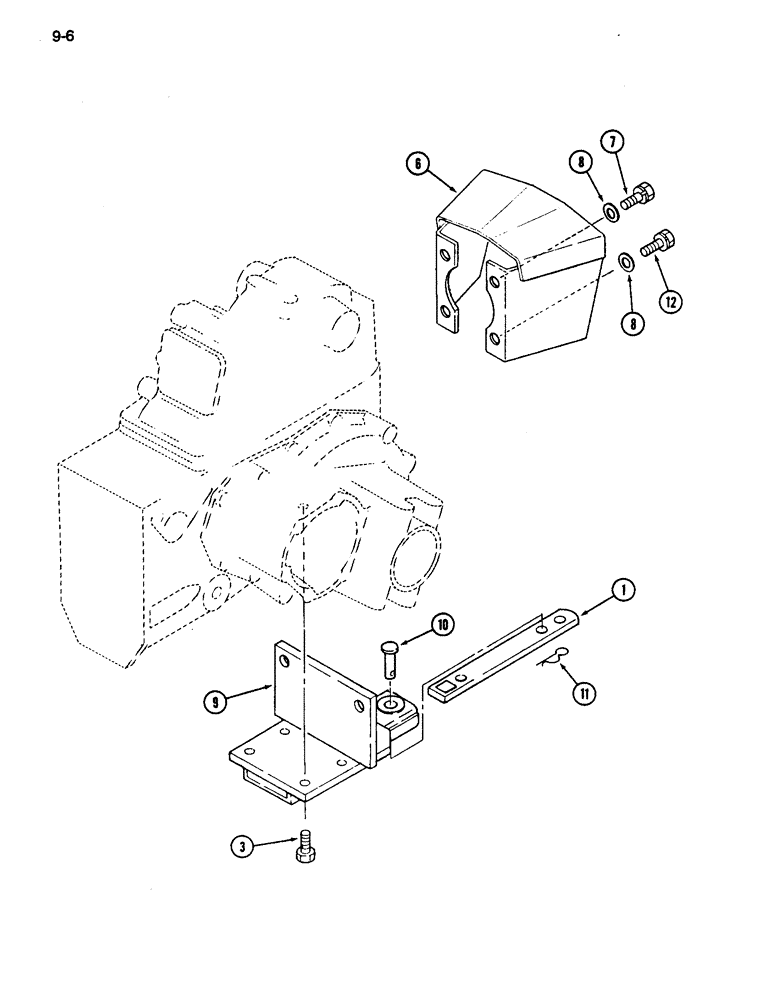

Схема запчастей Case IH 255 - (9-06) - DRAWBAR AND PTO SHIELD (09) - CHASSIS/ATTACHMENTS
8
12
11
3
9
7
10
8
1
6

Артикул

Название

Примечание

Количество

1

1275106C1

BAR

DRAWBAR - towing

1шт.

3

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, M12 x 40 mm

4шт.

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

4шт.

6

1269601C1

COVER ASSY

SHIELD - PTO

1шт.

7

614-14020

BOLT,Hex, M14 x 2 x 20mm, Cl 8.8, Full Thd

- hex, M14 x 20 mm

2шт.

7

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

8

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

4шт.

9

99254C1

BRACKET

- drawbar mounting

1шт.

10

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch

1шт.

11

153528C1

COTTER PIN

- hair

1шт.

12

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 11
