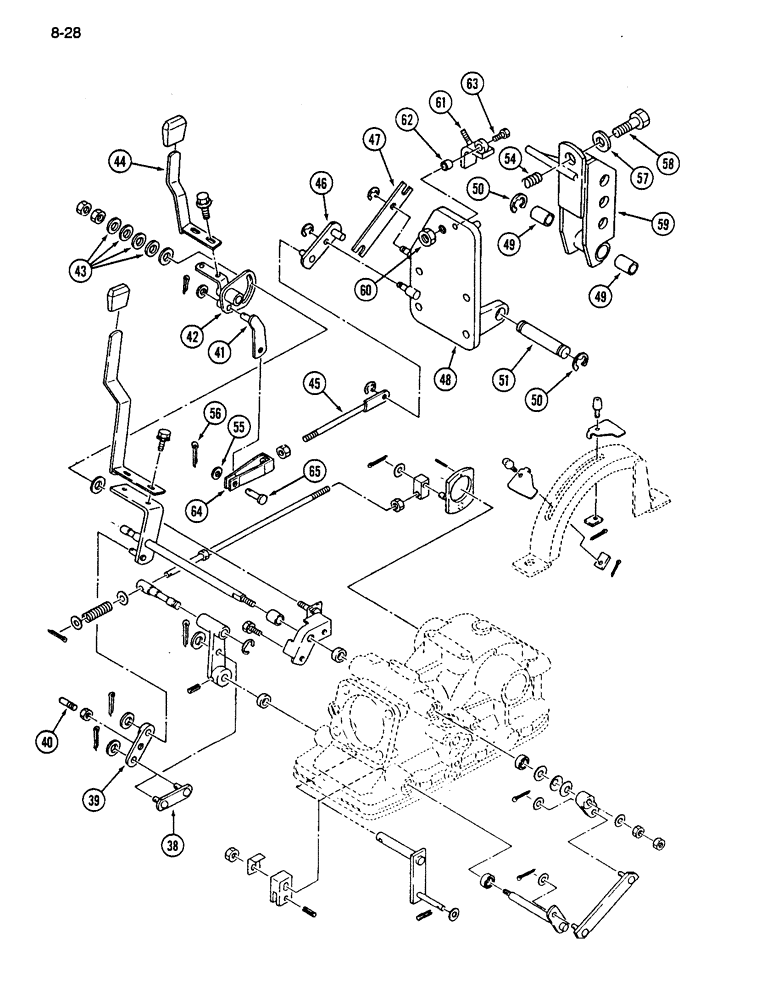

Запчасти Case IH 255 (8-28) - HITCH SYSTEM, POSITION AND DRAFT CONTROL LINKAGE (CONTD) (08) - HYDRAULICS

38

1265196C1

BAR

LINK - draft control

1шт.

39

1265197C1

ARM

LINK - draft control

1шт.

40

1265198C1

STUD

- M8 x 38 mm

1шт.

41

1265199C1

ARM

LINK - draft control

1шт.

42

1275220C1

BRACKET

- lever

1шт.

43

1265201C1

BELLEVILLE WASHER

- spring

4шт.

44

99233C1

LEVER

- draft control

1шт.

45

1275221C1

ROD

- linkage

1шт.

46

1265204C2

LINK

- pivot, draft control

1шт.

47

1265205C2

LINK

- draft control

1шт.

48

1265206C2

BRACKET

- upper link

1шт.

49

1265207C1

SPACER

BUSHING - bracket

2шт.

50

1265212C1

CIRCLIP,M16

RING - retaining, E type

2шт.

51

1265208C1

AXLE PIN

PIN - bracket

1шт.

54

1265209C1

VALVE SPRING

SPRING - bracket

1шт.

55

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

56

632-628

COTTER PIN,M3.2 x 20

PIN - cotter, 3 x 20 mm

1шт.

57

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

58

514-1017

BOLT,Hex, M16 x 1.5 x 70mm, Cl 8.8

1шт.

59

1265211C2

VALVE SPRING

BRACKET - upper link

1шт.

60

525-5109

NUT,M16 x 1.5, Cl 8

- hex, M16 x 1.50 (Replaces 1269787C1)

1шт.

61

1275217C1

STOP

- draft control

1шт.

62

1269821C1

SPACER

COLLAR - stop (Replaces 1275218C1)

1шт.

63

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

64

1275219C1

JOINT TURNING

YOKE - draft control

1шт.

65

1275224C1

AXLE PIN

PIN - clevis

1шт.
