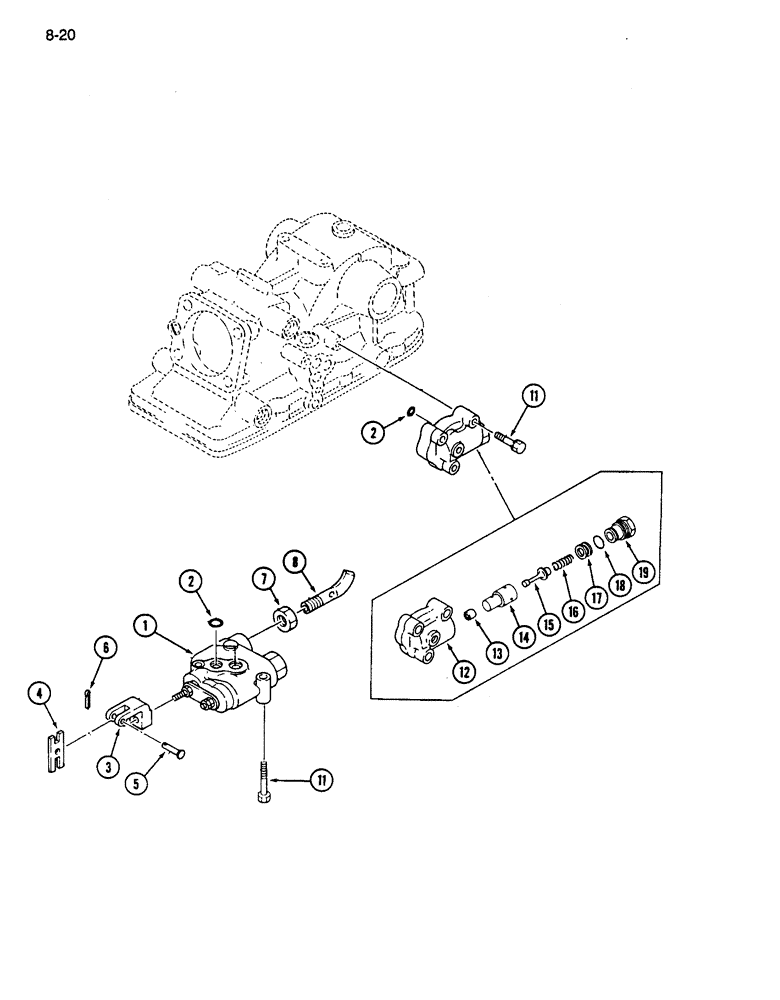

Запчасти Case IH 255 (8-20) - HYDRAULIC CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, hydraulic, See Figure 8-22

1шт.

2

1273523C1

O-RING

O-RING - 12 mm ID

5шт.

3

1273441C1

SUPPORT ASSY.

YOKE - valve linkage

1шт.

4

1282978C1

BAR

PLATE - valve linkage

1шт.

5

1273247C1

AXLE PIN

PIN - clevis

1шт.

6

732-1612

COTTER PIN,M1.6 x 12

PIN - cotter, 2 x 12 mm (Replaces 632-532)

1шт.

7

1269796C1

TUBE NUT

NUT - jam

1шт.

8

1273443C1

ROD

- valve

1шт.

11

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, M8 x 45 mm

5шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

1273445C1

COVER ASSY

COVER ASSEMBLY - housing, Includes: Ref. 12 - 19

1шт.

12

1265307C1

COVER ASSY

BODY - cover housing

1шт.

13

1265308C1

PLUG

- cover

1шт.

14

1265309C1

HOUSING

- poppet

1шт.

15

1265310C1

LOCK VALVE

VALVE - poppet

1шт.

16

1265311C1

VALVE SPRING

SPRING - poppet

1шт.

17

1265314C1

SET

SHIM SET - cover assembly poppet

1шт.

18

1265312C1

O-RING,0.614" ID x 0.754" OD x 0.07"

O-RING - 16 mm ID

1шт.

19

1265313C1

PLUG

- poppet adjust

1шт.
