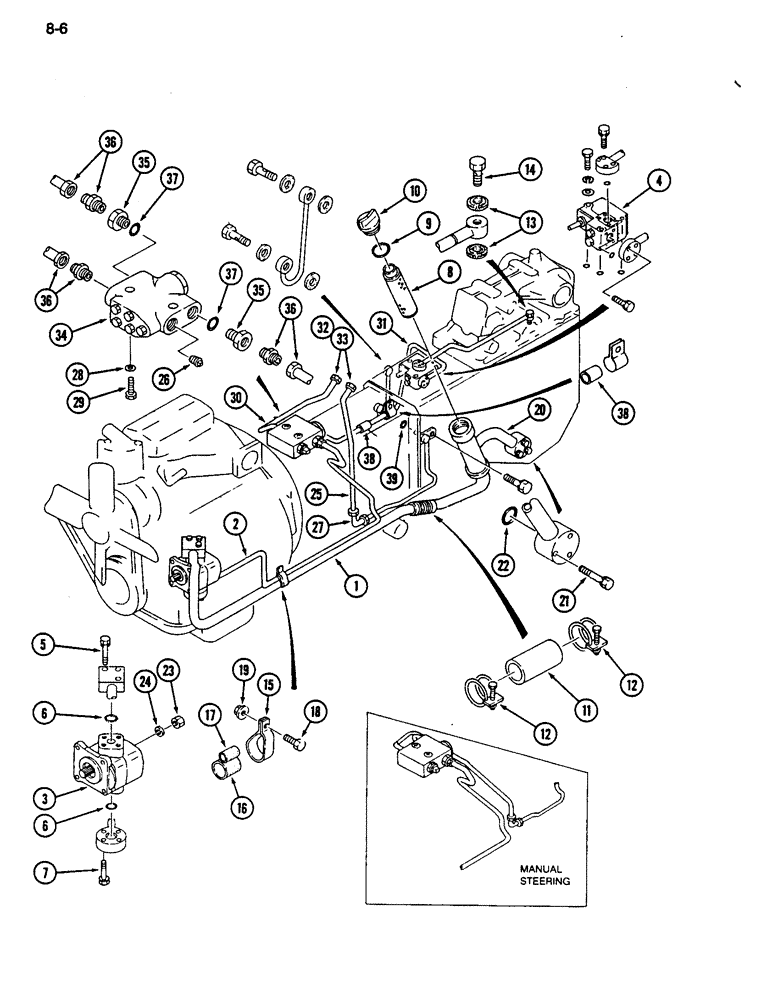

Запчасти Case IH 255 (8-06) - HYDRAULIC PUMP AND LINES, SYNCHROMESH TRANSMISSION (08) - HYDRAULICS

1

99249C1

SUCTION PIPE

TUBE - suction

1шт.

2

1282976C1

TUBE

- pressure

1шт.

Ref #19 - Should be 895-11005

1шт.

3

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, See Figure 8-12

1шт.

4

1963610C1

LOCK VALVE

VALVE - divider control (Replaces 1282708C92)

1шт.

5

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

3шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

6

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

2шт.

7

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

8

1273138C1

STRAINER ELEMENT

STRAINER - suction

1шт.

9

1269881C1

O-RING

O-RING - 42 mm ID

1шт.

10

1273411C1

PLUG

- suction tube

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - rubber, 90 mm long (Order 637728C1 and, Serial Range: cut-length)

1шт.

12

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - hose

2шт.

13

1282713C1

SEALING WASHER

- seal

2шт.

14

1282526C1

BOLT,M16 x 1.5 x 30mm

BOLT - special

1шт.

15

1273415C1

CLAMP

- tube

1шт.

16

1273416C1

HOSE,25.00 mm ID x 35.00 mm

- Cushion, Tube 25.00 mm ID x 35.00 mm

1шт.

17

1282727C1

TUBE

CUSHION - tube (Replaces 1273417C1)

1шт.

18

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

19

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

1шт.

20

99248C1

SUCTION PIPE

TUBE - suction, rear

1шт.

21

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

22

1269877C1

O-RING

- 28 mm ID

1шт.

23

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

4шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

25

1963624C1

TUBE

- return, with power steering (Replaces 1282977C2)

1шт.

26

444699

PLUG,Hex Soc, 3/8"-18

- drain, hex socket head, 3/8-18 PT

1шт.

27

1962626C1

JOINT TURNING

ELBOW - special

1шт.

28

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

29

30335R1

BOLT,Hex, M6 x 1 x 55mm, Cl 8.8

- hex, M6 x 55 mm

2шт.

30

1275151C2

TUBE

- steering (With power steering)

1шт.

31

1282710C1

TUBE

- pressure

1шт.

34

REF

INSTRUCTION

VALVE ASSEMBLY - flow divider, See Figure 8-14

1шт.

35

1275157C2

UNION

NUT - connector

1шт.

36

1275158C2

CONNECTOR, ELEC

CONNECTOR - 12 mm tube x 3/8 inch PT

4шт.

Ref #36 - (Includes Sleeve & Nut)

1шт.

37

1269874C1

O-RING

O-RING - 18 mm ID

2шт.

38

1282727C1

TUBE

CUSHION - clamp

2шт.

39

1273520C1

O-RING

O-RING - 7 mm ID

1шт.

637728C1

HOSE

- hydraulic, 1 ID x 1-1/2 inch OD x 1 foot

1шт.
