Запчасти Case IH 255 (8-02) - PUMP AND HYDRAULIC LINES, CONSTANT MESH MECHANICAL TRANSMISSION, MANUAL STEERING (08) - HYDRAULICS

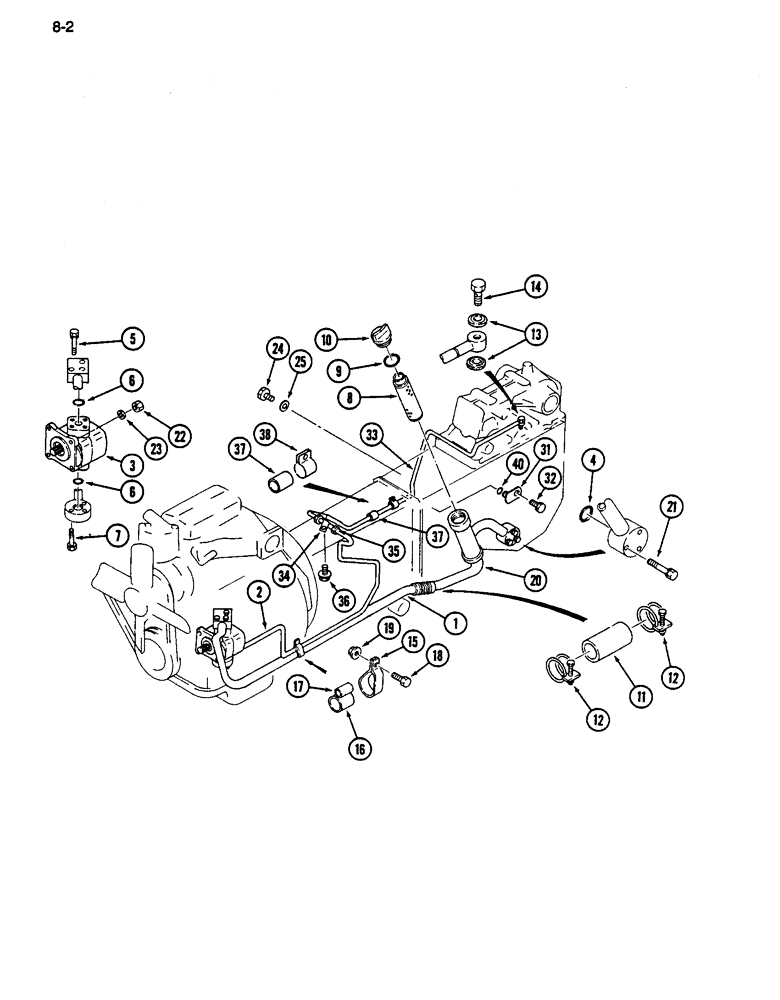

Схема запчастей Case IH 255 - (8-02) - PUMP AND HYDRAULIC LINES, CONSTANT MESH MECHANICAL TRANSMISSION, MANUAL STEERING (08) - HYDRAULICS
21
16
7
23
11
35
25
13
4
3
17
20
19
31
14
32
9
10
12
12
2
37
33
6
5
40
1
15
24
36
37
6
34
18
22
8
38

Артикул

Название

Примечание

Количество

1

99249C1

SUCTION PIPE

TUBE - suction

1шт.

2

1282976C1

TUBE

- supply

1шт.

Ref #19 - Should be 895-11005

1шт.

3

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, See Figure 8-10

1шт.

4

1269877C1

O-RING

- 28 mm ID

1шт.

5

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

3шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

6

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

2шт.

7

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

8

1273138C1

STRAINER ELEMENT

STRAINER - suction

1шт.

9

1269881C1

O-RING

O-RING - 42 mm ID

1шт.

10

1273411C1

PLUG

- suction tube

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - rubber, 90 mm long (Order 637728C1 and, Serial Range: cut-length)

1шт.

12

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - hose

2шт.

13

1282713C1

SEALING WASHER

SEAL - washer

2шт.

14

1282526C1

BOLT,M16 x 1.5 x 30mm

BOLT - special

1шт.

15

1273415C1

CLAMP

- tube

1шт.

16

1273416C1

HOSE,25.00 mm ID x 35.00 mm

- Cushion, Tube 25.00 mm ID x 35.00 mm

1шт.

17

1282727C1

TUBE

CUSHION - tube (Replaces 1273417C1)

1шт.

18

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

19

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

1шт.

20

99248C1

SUCTION PIPE

TUBE - suction

1шт.

21

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

22

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

4шт.

23

892-11008

LOCK WASHER,8mm ID

WASHER - lock, 10 mm

4шт.

24

514-700

BOLT,Hex, M10 x 1 x 16mm, Cl 8.8, Full Thd

- hex, M10 x 1.25 x 15 mm

1шт.

25

1282724C1

GASKET

- plug

1шт.

31

99253C1

PLUG

- housing

1шт.

32

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

33

1275152C1

TUBE

- supply

1шт.

34

99251C2

PIPE CLAMP

TUBE ASSEMBLY - hydraulic, with bracket

1шт.

35

1273774C1

UNION

CONNECTOR ASSEMBLY - tube

2шт.

Ref #35 - (Includes the sleeve)

1шт.

36

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

37

1282727C1

TUBE

CUSHION - tube

2шт.

38

1273693C1

CLAMP

- tube

1шт.

40

1962522C1

O-RING

- plug

1шт.

637728C1

HOSE

- hydraulic, 1 ID x 1-1/2 inch OD x 1 foot

1шт.

Выбрано товаров: 43
