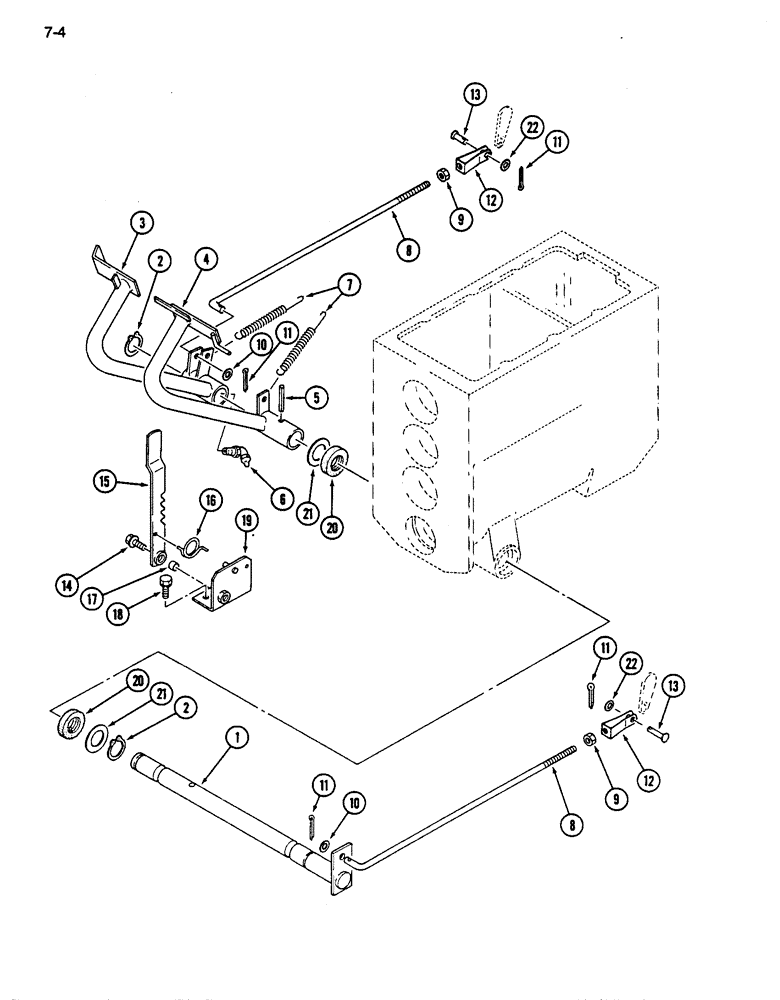

Запчасти Case IH 255 (7-04) - BRAKE CONTROLS (07) - BRAKES

1

1269816C1

SHAFT HOUSING

SHAFT - brake pedal

1шт.

2

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

2шт.

3

1269817C1

PEDAL

- brake, right

1шт.

4

1269818C1

PEDAL

- brake, left

1шт.

5

617939R1

PIN,5/16" x 1 1/2", Coiled

- slotted spring, 8 x 40 mm

1шт.

6

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree

1шт.

7

1269808C1

VALVE SPRING

SPRING - brake pedal

2шт.

8

1269823C1

ROD

- brake

2шт.

9

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10 x 1.25

2шт.

10

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

11

732-2020

COTTER PIN,M2 x 20

PIN - cotter, 2 x 20 mm (replaces 632-580)

4шт.

12

1269813C1

YOKE

- brake arm

2шт.

13

30569R1

CLEVIS PIN,M8 x 25

PIN - clevis, 8 x 25 mm

2шт.

14

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

15

1269819C1

RATCHET

- parking

1шт.

16

1269820C1

VALVE SPRING

SPRING - ratchet

1шт.

17

1269821C1

SPACER

- ratchet

1шт.

18

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

19

1275133C1

BRACKET

- ratchet mounting

1шт.

20

1273180C1

OIL SEAL

SEAL - oil

2шт.

21

30180R1

WASHER,M24 x 44.5 x 5, HT

- flat, 1-1/64 x 1-47/64 x 13/64 inch

2шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 11/32 x 43/64 x 1/16 inch

2шт.
