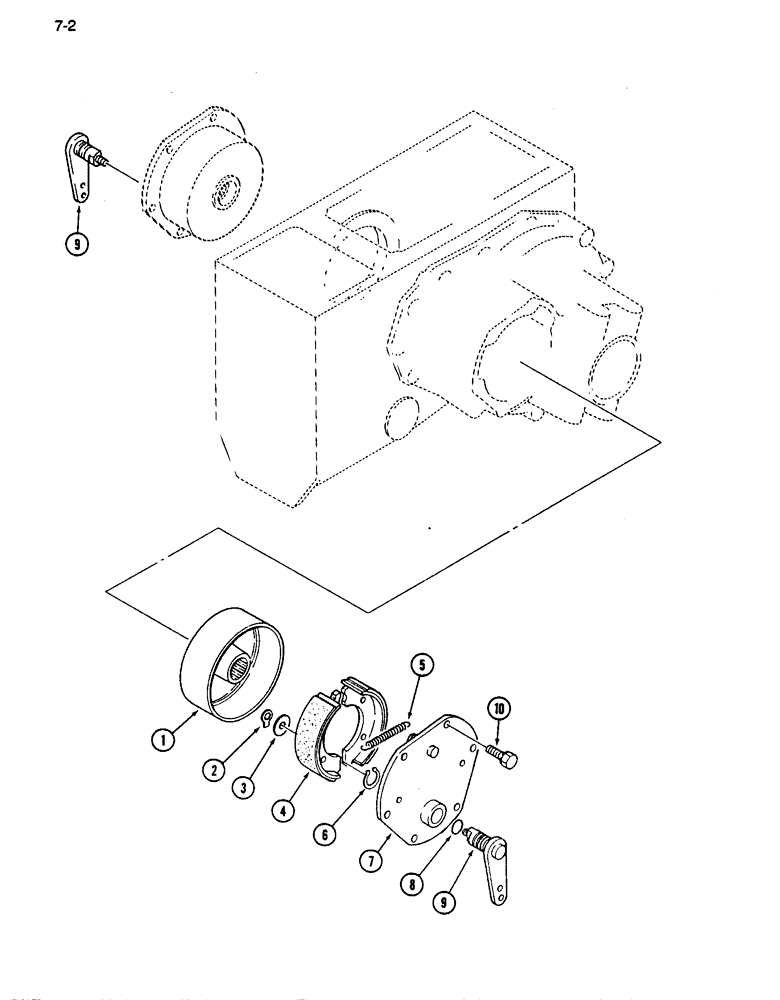

Запчасти Case IH 255 (7-02) - BRAKES (07) - BRAKES

1962543C1

BRAKE LINE

BRAKE ASSEMBLY - rear wheel

2шт.

1

1269568C1

DRUM HUB

DRUM - brakes

1шт.

2

1269569C1

RING

- retaining

1шт.

3

1269570C1

WASHER

- stop plate

1шт.

4

1269571C1

SHOE (ASSY)

SHOE - brake

2шт.

5

1269572C1

VALVE SPRING

SPRING - return

2шт.

6

933105R1

SNAP RING,M22, Ext

RING - retaining, external, 20 mm

1шт.

7

1961802C1

PLATE ASSY.

PLATE - torque

1шт.

8

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

9

1961801C1

ARM

- actuating

1шт.

10

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

892-11010

LOCK WASHER,M10

6шт.
