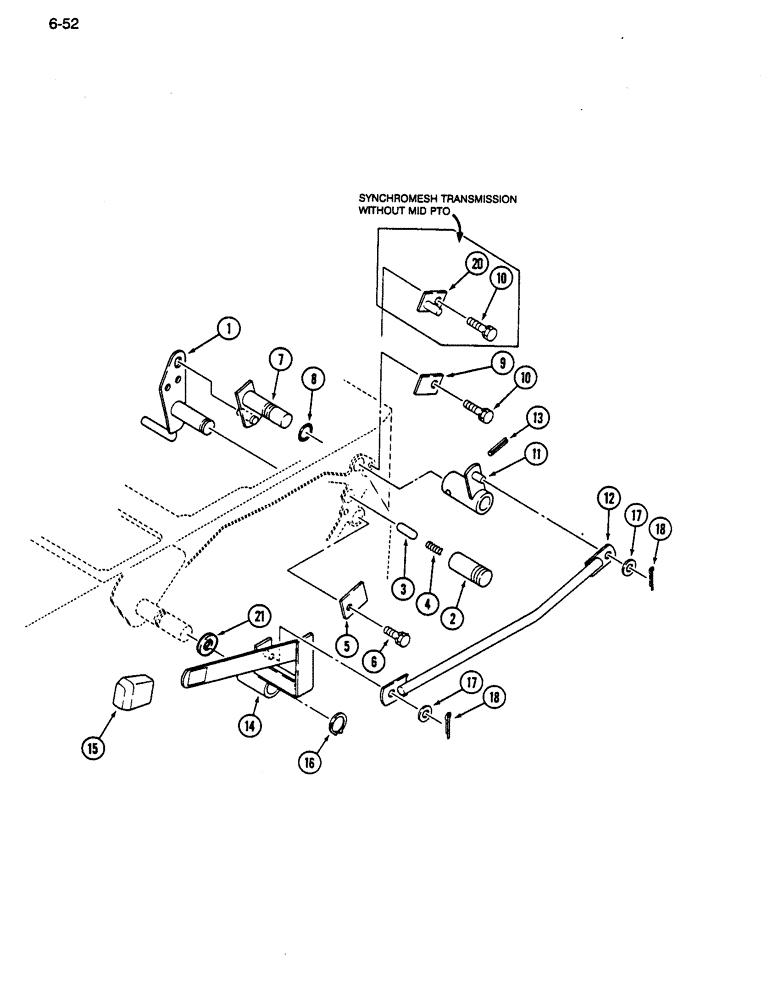

Запчасти Case IH 255 (6-52) - SYNCHROMESH TRANSMISSION CONTROL, MID POWER TAKEOFF (06) - POWER TRAIN

1

99240C1

SHIFT RAIL

SHIFTER - mid power takeoff

1шт.

2

99397C1

BOSS

- shift position pin

1шт.

3

99396C1

KEY

PIN - shift position

1шт.

4

1273482C1

VALVE SPRING

SPRING - shift position pin

1шт.

5

99398C1

PLATE ASSY.

PLATE - retainer

1шт.

6

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

7

99241C1

SHIFT RAIL

SHIFTER - mid power takeoff

1шт.

8

1288101C1

O-RING

O-RING - 16 mm ID

1шт.

9

99242C1

PLATE ASSY.

PLATE - retainer

1шт.

10

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

11

99243C1

ARM

- shift linkage

1шт.

12

99244C1

ROD

- shift linkage

1шт.

13

591184R1

PIN,3/16" x 1 1/4", Coiled

- spring, 5 x 32 mm

1шт.

14

1962641C1

LEVER

ASSEMBLY - mid PTO

1шт.

15

1273379C1

KNOB

- mid PTO lever

1шт.

16

933105R1

SNAP RING,M22, Ext

RING - retaining, external, 20 mm ID

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

18

632-628

COTTER PIN,M3.2 x 20

PIN - cotter, 3 x 20 mm

2шт.

20

1962642C1

STOP

- arm (Without Mid PTO)

1шт.

21

1963150C1

SHIM

KIT - shim, Includes: shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.50 mm

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 1.00 mm

1шт.
