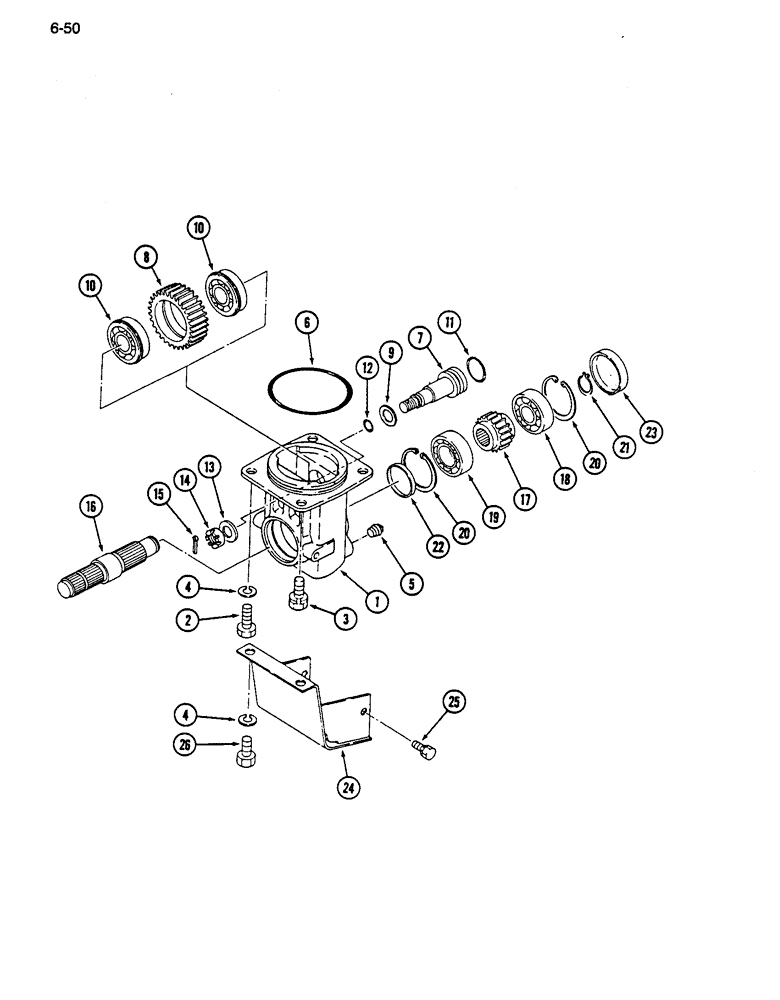

Запчасти Case IH 255 (6-50) - MID POWER TAKEOFF, SYNCHROMESH TRANSMISSION (06) - POWER TRAIN

1

99234C1

CASE

HOUSING - mid power takeoff

1шт.

2

99399C1

BOLT (SPREADER),Hex, M12 x 1.75 x 35mm

BOLT - hex, special

1шт.

3

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

1шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

5

444699

PLUG,Hex Soc, 3/8"-18

- drain, hex socket head, 3/8-18 PT

1шт.

6

1962627C1

O-RING

- mid PTO housing

1шт.

7

99235C1

SHAFT HOUSING

SHAFT - input gear

1шт.

8

99236C1

GEAR

- input, 28tooth

1шт.

9

1273568C1

SHIM

- bearing

1шт.

10

1271865C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

11

1269874C1

O-RING

O-RING - 24 mm ID

1шт.

12

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

14

1275160C1

NUT

- castle, M12

1шт.

15

632-628

COTTER PIN,M3.2 x 20

PIN - cotter, 3 x 20 mm

1шт.

16

99237C1

SHAFT

- mid power takeoff

1шт.

17

99238C1

GEAR

- 24 tooth

1шт.

18

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

2шт.

19

1271858C91

BALL BEARING

BEARING ASSEMBLY - ball

1шт.

20

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

2шт.

21

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

1шт.

22

1962466C1

OIL SEAL

SEAL - oil

1шт.

23

1963242C1

SEAL ASSY.

PLUG - rubber (Replaces 1269429C1)

1шт.

24

99239C1

COVER ASSY

COVER - mid power takeoff

1шт.

25

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

26

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.
