(6-44) - REAR WHEEL WEIGHTS

Запчасти Case IH 255 (6-44) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

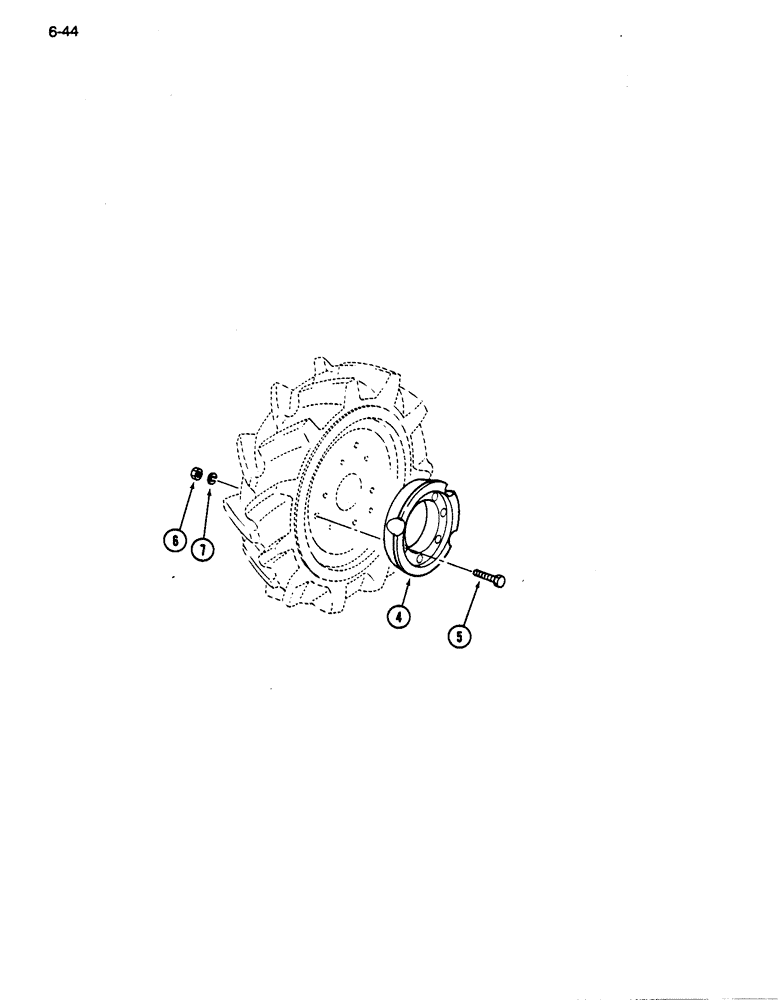

Схема запчастей Case IH 255 - (6-44) - REAR WHEEL WEIGHTS (06) - POWER TRAIN
6
5
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1962624C91

WEIGHT ATTACHMENT - rear wheel (Machinery item)

1шт.

4

NSS

NOT SOLD SEPARAT

WEIGHT - rear wheel

2шт.

5

514-1015

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

6шт.

6

525-5109

NUT,M16 x 1.5, Cl 8

- hex, wheel weight, M16 x 1.50 mm

6шт.

7

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

6шт.
