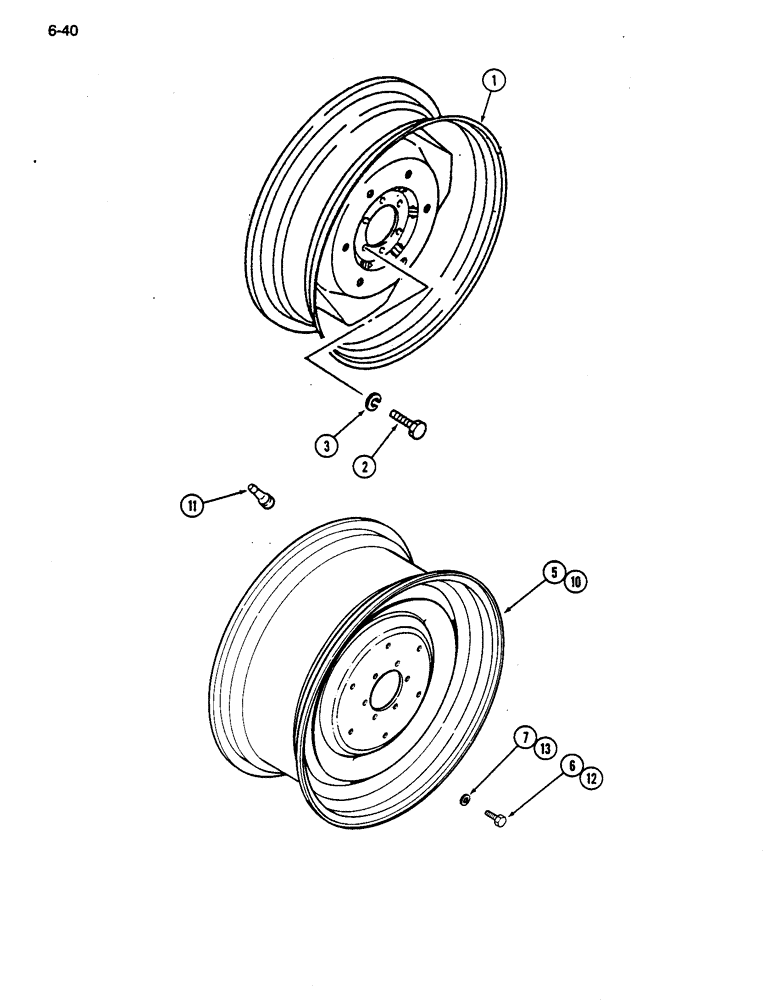

Запчасти Case IH 255 (6-40) - REAR WHEELS, ONE PIECE (06) - POWER TRAIN

1

1271847C1

WHEEL (STEERING)

WHEEL - rear, W7 x 24 (For 9.5-24 R1 tire) (Shown)

2шт.

1

1271848C1

WHEEL

- rear, W12 x 16W (For 13.6-16 turf tire)

2шт.

1

99379C1

WHEEL (STEERING)

WHEEL - rear, W11 x 20 (For 355/80D PD turf tire)

2шт.

2

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm

12шт.

3

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.

5

1963752C1

WHEEL (STEERING)

WHEEL - rear, W7 x 24 (For 7.50-18 tire)

2шт.

6

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm

12шт.

7

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.

10

1963750C1

WHEEL (STEERING)

WHEEL - rear, 16.1 x W11C (For 13.6-16.1 R3 tire)

2шт.

11

387897R91

VALVE STEM

VALVE - wheel

2шт.

12

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm

12шт.

13

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.
