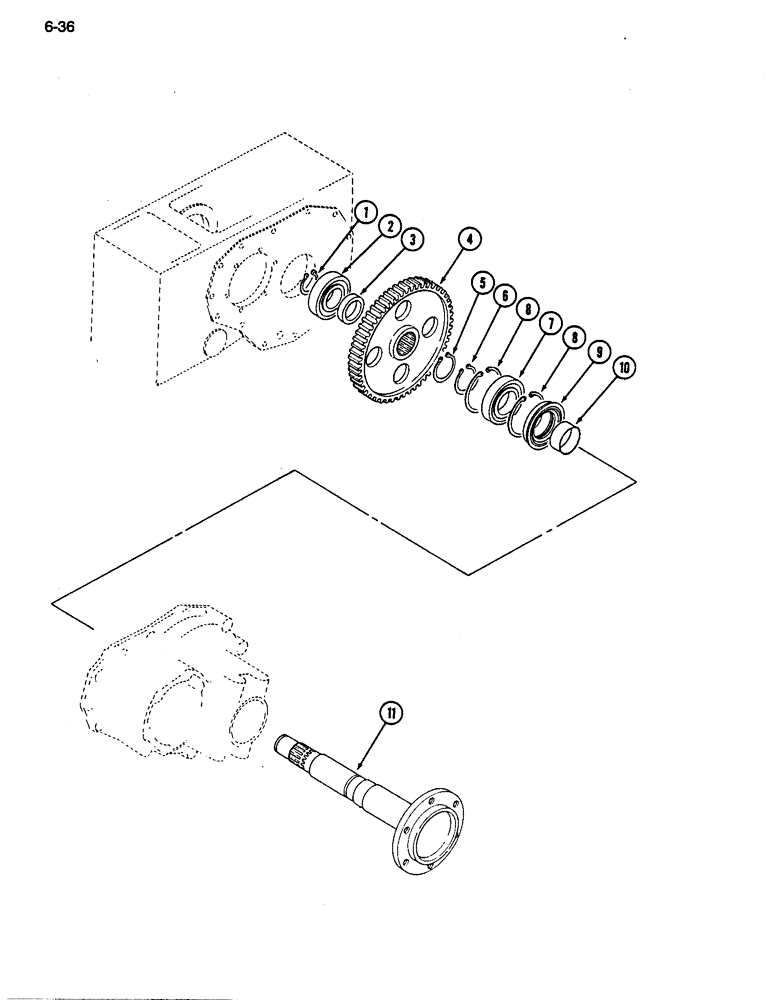

Запчасти Case IH 255 (6-36) - REAR AXLE (06) - POWER TRAIN

1

933075R1

SNAP RING,M40, Ext

RING - retaining, external, 36 mm ID

2шт.

2

1271867C91

BALL BEARING

BEARING ASSEMBLY - ball

2шт.

3

1269555C1

SPACER

- axle

2шт.

4

1269557C1

GEAR WHEEL

GEAR - drive, 68 tooth

2шт.

5

933129R1

SNAP RING,M48, Ext

RING - retaining, external, 44 mm ID

2шт.

6

933088R1

SNAP RING,M50, Ext

RING - retaining, external, 46 mm ID

2шт.

7

1271861C91

BALL BEARING

ASSEMBLY - ball

2шт.

8

933077R1

SNAP RING,M90, Int

RING - retaining, internal, 96 mm OD

4шт.

9

1273189C1

OIL SEAL

SEAL - oil

2шт.

10

1269556C1

SPACER

- axle

2шт.

11

1269558C1

SHAFT HOUSING

SHAFT - rear axle

2шт.
