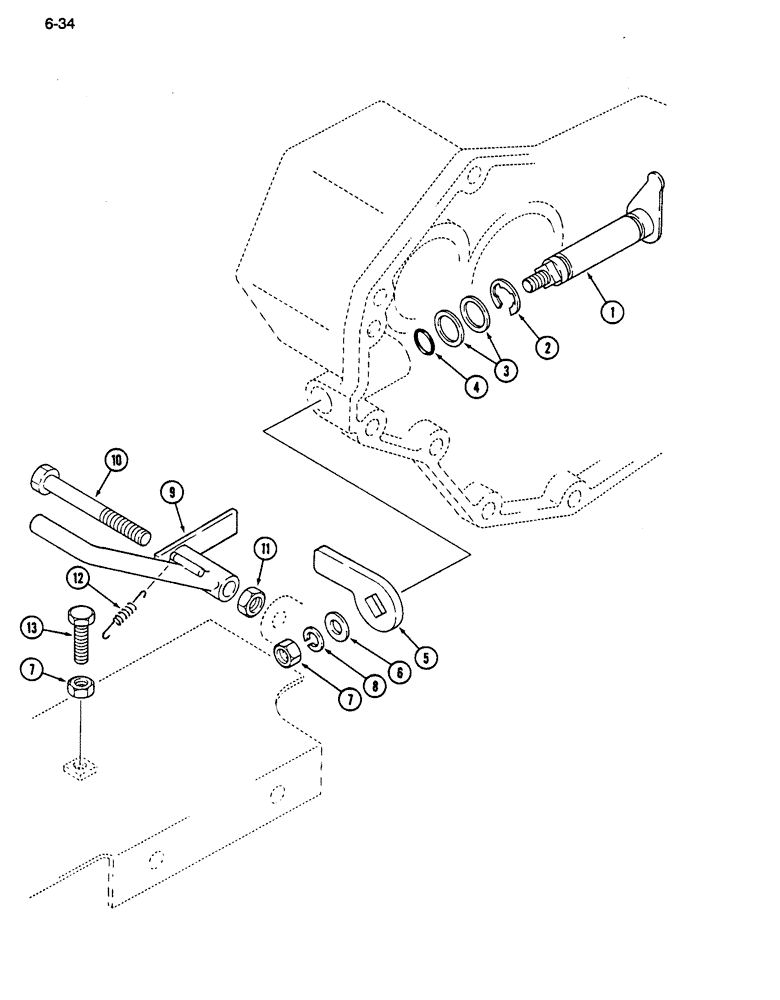

Запчасти Case IH 255 (6-34) - DIFFERENTIAL, PARK LOCK (06) - POWER TRAIN

1

1269486C1

LEVER

- park lock

1шт.

2

1271818C1

CIRCLIP,M13

RING - retaining

1шт.

3

1269551C1

SET

SHIM KIT - lever

1шт.

4

1269870C1

O-RING

O-RING - 11 mm ID

1шт.

5

1269484C1

ARM

- park lock

1шт.

6

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- hardened, 9 x 17 x 2 mm

1шт.

7

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

2шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER - lock, 10 mm

1шт.

9

1269554C1

PEDAL

- differential lock

1шт.

10

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

1шт.

11

30169R1

NUT,M12 x 1.75, Cl 10

- hex, M12, Grade 10

1шт.

12

1269552C1

VALVE SPRING

SPRING - park lock pedal

1шт.

13

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.
