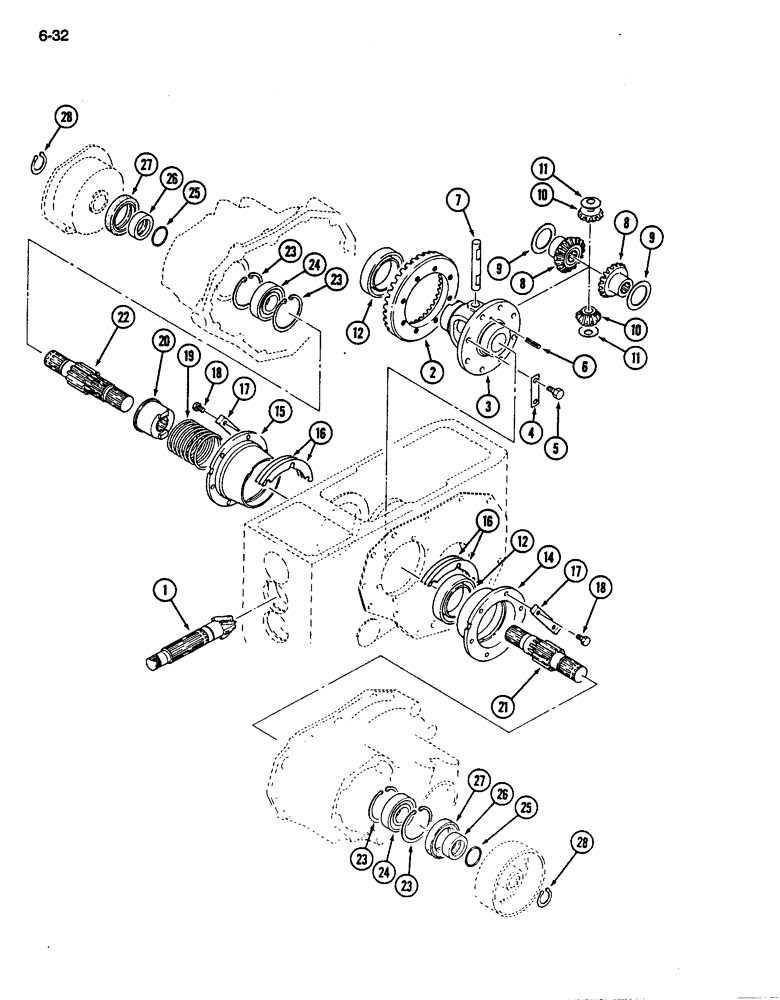

Запчасти Case IH 255 (6-32) - DIFFERENTIAL (06) - POWER TRAIN

1282937C1

STRIPPER PACKAGE

PINION AND RING GEAR - differential (2 Wheel Drive), Includes: Ref. 1 & 2

1шт.

1282938C1

STRIPPER PACKAGE

PINION AND RING GEAR - differential (MFD), Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

3

1981377C1

CASE

HOUSING - differential (P.I.N. CCJ0018625 and after)

1шт.

3

1269594C1

CARRIER

HOUSING - differential (Prior to P.I.N. CCJ0018625)

1шт.

4

1269595C1

BAR

STRAP - locking

4шт.

5

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

6

31122R1

LOCK PIN,M6 x 40, Slotted

PIN - slotted spring, 6 x 40 mm

1шт.

7

1269596C1

SHAFT HOUSING

SHAFT - side gears

1шт.

1282939C1

STRIPPER PACKAGE

GEAR KIT - differential, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - side, 16 tooth

2шт.

9

NSS

NOT SOLD SEPARAT

WASHER -thrust

2шт.

10

NSS

NOT SOLD SEPARAT

GEAR - bevel, 10 tooth

2шт.

11

NSS

NOT SOLD SEPARAT

WASHER - thrust

2шт.

12

1265194C91

BALL BEARING,60 mm ID x 95 mm OD x 18 mm

BEARING ASSEMBLY

2шт.

14

1269547C1

BEARING HOUSING

HOLDER - bearing, left

1шт.

15

1269548C1

NOZZLE HOLDER

HOLDER - bearing, right

1шт.

16

1273259C1

SHIM

KIT - differential

1шт.

17

1269539C1

BAR

STRAP - locking

6шт.

18

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

12шт.

19

1981380C1

VALVE SPRING

SPRING - hub (P.I.N. CCJ0018625 and after)

1шт.

19

1269540C1

VALVE SPRING

SPRING - hub (Prior to P.I.N. CCJ0018625)

1шт.

20

1981378C1

HUB CAP

HUB - differential (P.I.N. CCJ0018625 and after)

1шт.

20

1269541C1

HUB CAP

HUB - differential (Prior to P.I.N. CCJ0018625)

1шт.

21

1275103C1

SHAFT HOUSING

SHAFT - differential, left

1шт.

22

1275104C1

SHAFT HOUSING

SHAFT - differential, right

1шт.

23

933076R1

SNAP RING,M72, Int

RING - retaining, internal, 77 mm OD

4шт.

24

1265193C91

BALL BEARING

BEARING ASSEMBLY - ball

2шт.

25

1269878C1

O-RING

O-RING - 30 mm ID

2шт.

26

1269542C1

SPACER

- axle seal

2шт.

27

1273187C1

OIL SEAL

SEAL - oil

2шт.

28

933086R1

SNAP RING,M30, Ext

- retaining, external, 28 mm ID

2шт.

29

1981379C1

SPACER

- differential lock (P.I.N. CCJ0018625 and after)

1шт.
