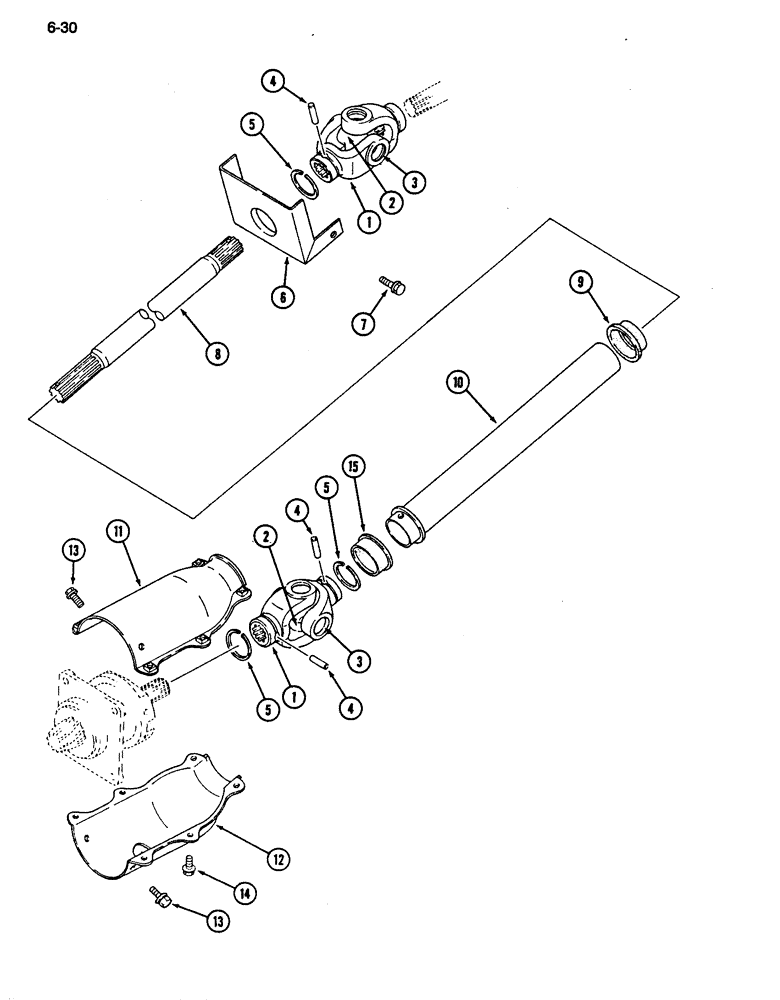

Запчасти Case IH 255 (6-30) - MFD DRIVE SHAFT (06) - POWER TRAIN

1

1269830C91

JOINT TURNING

U-JOINT KIT - drive shaft, Includes: Ref. 2 & 3

2шт.

2

1269831C1

KIT

BEARING ASSEMBLY - drive shaft

2шт.

3

933645R1

WASHER

RING - retaining, internal, 21 mm OD

8шт.

4

30778R1

DOWEL,M6 x 30

PIN - dowel, hardened, 6 x 30 mm

3шт.

5

1269833C2

RING, SNAP

RING - retaining

3шт.

6

1269831C1

KIT

COVER - U-joint

1шт.

7

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

8

99223C1

SHAFT

- drive

1шт.

9

1269836C1

SEAL

SEAL - cushion, rubber

1шт.

10

99224C1

COVER ASSY

TUBE - shaft cover

1шт.

11

1269838C1

COVER ASSY

COVER - U-joint, upper

1шт.

12

1269839C1

COVER ASSY

COVER - u joint, lower

1шт.

13

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

10шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

14

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

15

99225C1

PLUG

SEAL - cushion, rubber

1шт.
