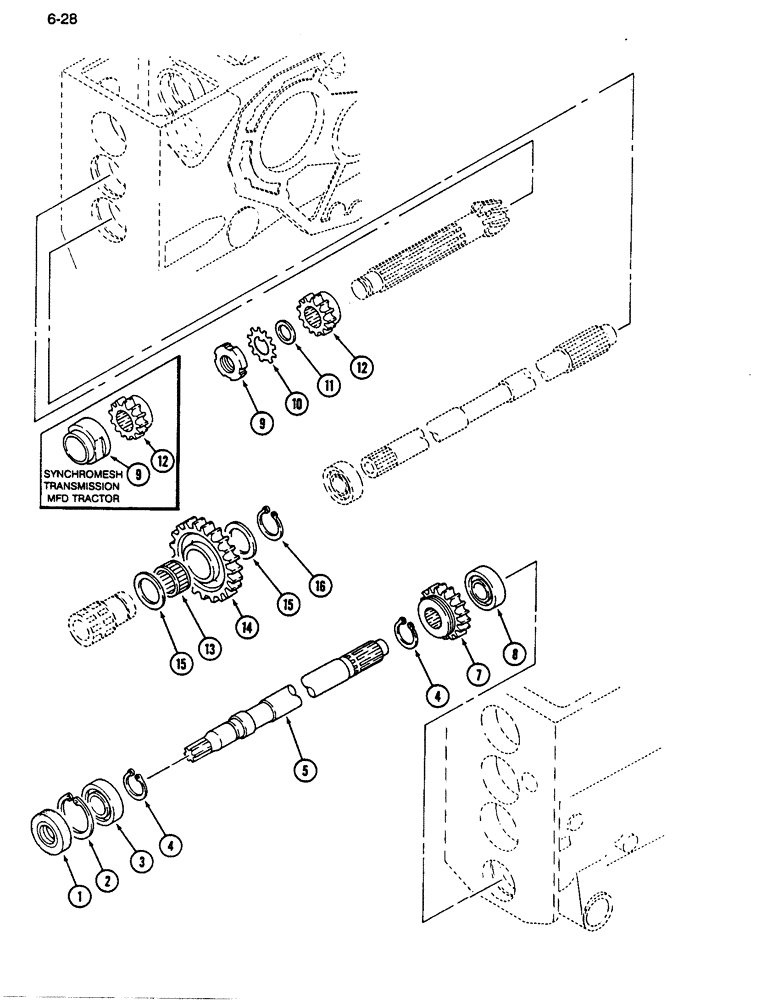

Запчасти Case IH 255 (6-28) - FRONT DRIVE PTO, MFD TRACTOR (06) - POWER TRAIN

1

1273323C1

OIL SEAL

SEAL - oil

1шт.

2

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

1шт.

3

1271857C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

4

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

2шт.

5

1269405C1

SHAFT HOUSING

SHAFT - output

1шт.

7

1269400C1

GEAR WHEEL

GEAR - 24 tooth

1шт.

8

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

9

31098R1

LOCK NUT,M20 x 1, Bearing

NUT - bearing lock (Constant Mesh transmission) (MFD tractor)

1шт.

9

1282638C1

NUT

- special (Synchromesh transmission) (MFD tractor)

1шт.

9

31099R1

LOCK NUT,M25 x 1.5, Bearing

NUT - bearing lock (2 wheel drive)

1шт.

10

31100R1

LOCK WASHER

- bearing lock (Constant Mesh transmission) (MFD tractor)

1шт.

10

982894R1

LOCK WASHER

- bearing lock (2 wheel drive)

1шт.

11

1269401C1

WASHER

- flat, 30 mm OD (Constant Mesh transmission) (MFD tractor)

1шт.

12

1282639C1

GEAR WHEEL

GEAR - 17 tooth

1шт.

13

1273331C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

1шт.

14

1269404C1

GEAR WHEEL

GEAR - 38 tooth

1шт.

15

1273324C1

WASHER

- flat, 47 mm OD

2шт.

16

933029R1

SNAP RING,M35, Ext

RING - retaining, external, 32 mm ID

1шт.
