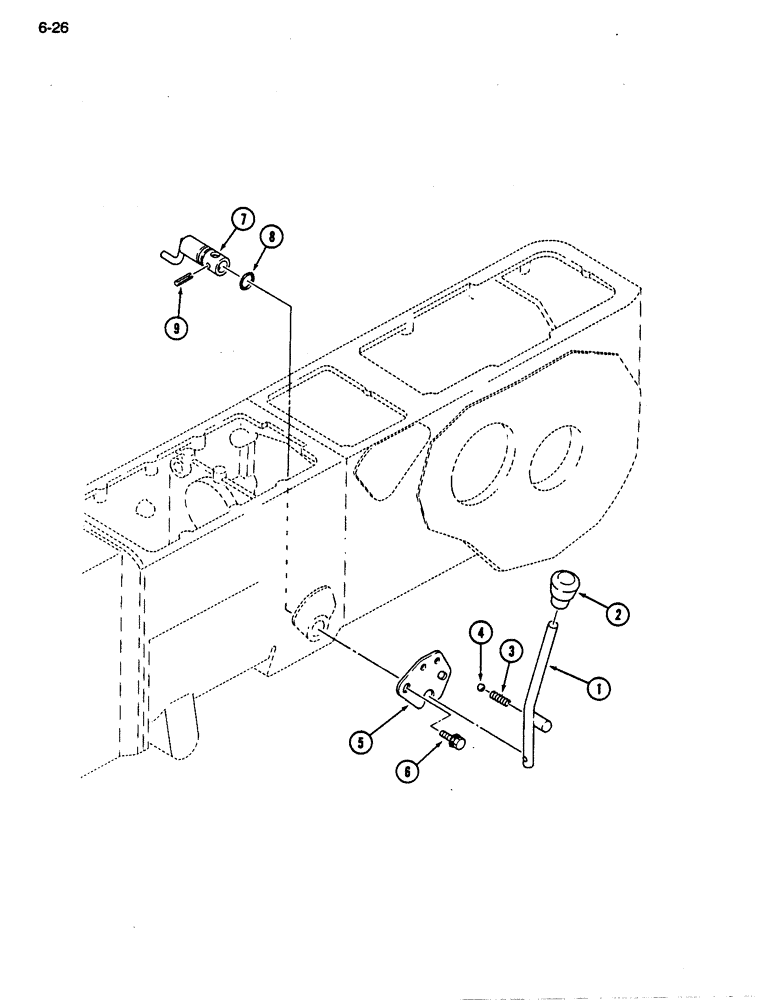

Запчасти Case IH 255 (6-26) - MFD CONTROLS (06) - POWER TRAIN

1

1273506C1

LEVER

- shift

1шт.

2

1273497C1

KNOB

- shift lever

1шт.

3

1273456C1

VALVE SPRING

SPRING - shift fork (Replaces 1962640C1)

1шт.

4

17011R1

BALL

- 11/32 inch diameter

1шт.

5

12735O7C1

PLATE - support

1шт.

6

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

7

1273508C1

ARM

- control

1шт.

8

1269872C1

O-RING

- 20 mm ID

1шт.

9

30323R1

LOCK PIN,M5 x 26, Slotted

PIN - slotted spring, 5 x 26 mm

1шт.
