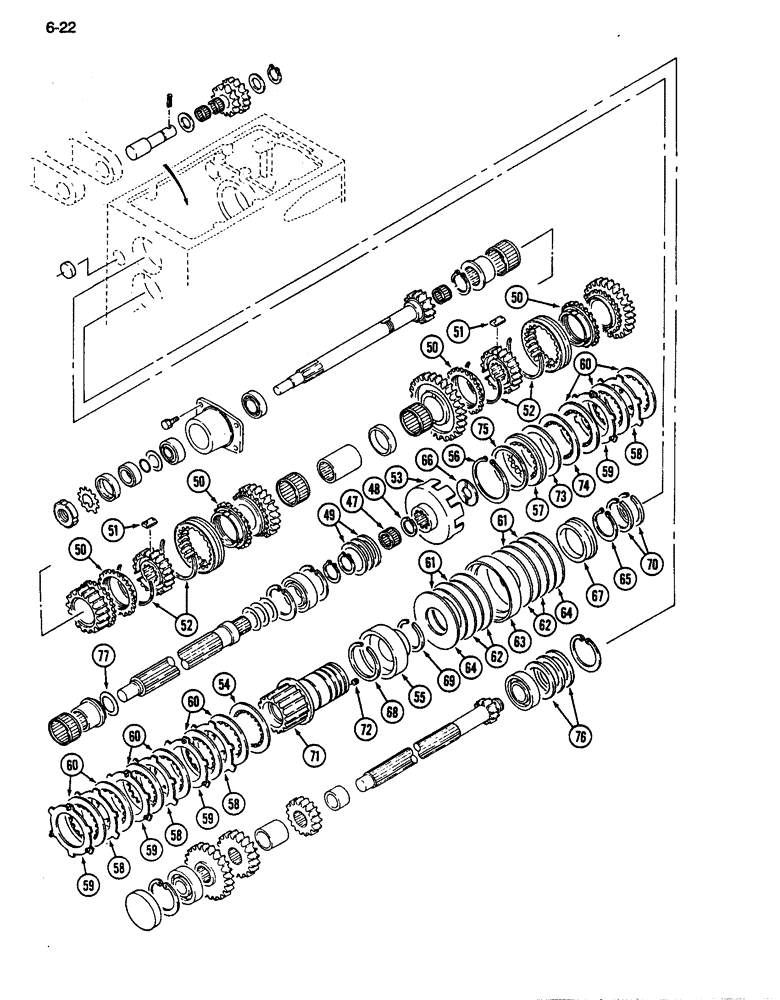

Запчасти Case IH 255 (6-22) - SELECTOR AND COUNTER GEAR UPPER, SYNCHROMESH TRANSMISSION (CONTD) (06) - POWER TRAIN

47

1273557C91

NEEDLE BEARING

ASSEMBLY - needle

1шт.

48

1282616C1

RING

- retaining

1шт.

49

1282618C1

SET

SHIM KIT - clutch

1шт.

50

1282619C1

SYNCHRONIZER

- transmission

4шт.

51

1282620C1

KEY

- gear

6шт.

52

1282621C1

VALVE SPRING

SPRING - retaining

4шт.

53

1282623C1

COVER ASSY

COVER - clutch

1шт.

54

1282628C1

PLATE ASSY.

PLATE - 34 tooth

1шт.

55

1282625C1

PISTON ASSY.

PISTON - clutch

1шт.

56

703696R1

RING

- retaining, external, 55 mm ID

1шт.

57

1282626C1

PLATE ASSY.

PLATE - back, 34 tooth

1шт.

1282627C1

STRIPPER PACKAGE

KIT - driven disc assembly, Includes: Ref. 58 - 60

1шт.

58

NSS

NOT SOLD SEPARAT

PLATE - driven (Order 1282627C1)

4шт.

59

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - clutch (Order 1282627C1)

4шт.

60

NSS

NOT SOLD SEPARAT

DISC ASSEMBLY - clutch (Order 1282627C1)

9шт.

1282629C2

SPRING

KIT - clutch disc spring, Includes: Ref. 61 - 64

1шт.

61

NSS

NOT SOLD SEPARAT

SPACER - disc spring (Order 1282629C2)

4шт.

62

NSS

NOT SOLD SEPARAT

DISC - spring (Order 1282629C2)

4шт.

63

NSS

NOT SOLD SEPARAT

SUPPORT - spring (Order 1282629C2)

1шт.

64

NSS

NOT SOLD SEPARAT

DISC - spring (Order 1282629C2)

2шт.

65

1282617C1

RING

- retaining

1шт.

66

1282631C1

WASHER

- clutch

1шт.

67

1282632C1

GUIDE

- spring

1шт.

1287758C2

SEALING RING

- seal ring, Includes: Ref. 68 & 69

1шт.

68

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

69

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

70

1282635C1

RING

- seal

2шт.

71

1282624C2

HUB CAP

HUB ASSEMBLY - clutch, Includes: Ref. 72

1шт.

72

NSS

NOT SOLD SEPARAT

PLUG - clutch hub (Order 1282624C2)

1шт.

73

1282636C1

SPRING WASHER

SPRING - wave

1шт.

74

1282637C1

PLATE ASSY.

PLATE - 34 tooth

1шт.

75

1282630C1

SET

SHIM KIT - clutch

1шт.

76

1273013C2

STRIPPER PACKAGE

SHIM KIT - range shaft

1шт.

77

1282797C1

SHIM

- bearing hub

1шт.
