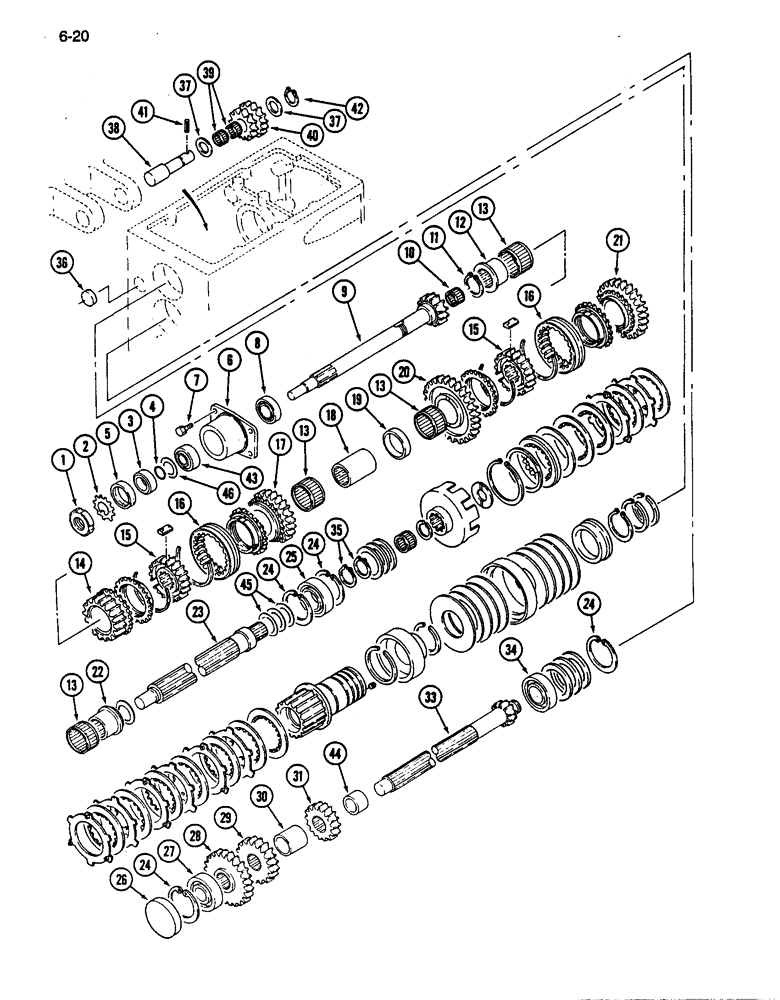

Запчасти Case IH 255 (6-20) - SELECTOR AND COUNTER GEAR UPPER, SYNCHROMESH TRANSMISSION (06) - POWER TRAIN

1

31099R1

LOCK NUT,M25 x 1.5, Bearing

NUT - bearing lock, M25 x 1.50

1шт.

2

31101R1

LOCK WASHER

- bearing lock

1шт.

3

1269497C1

BUSHING

- drive shaft

1шт.

4

1282979C1

O-RING

O-RING - 25 mm ID (Replaces 1269875C1)

1шт.

5

1273184C1

OIL SEAL

SEAL - oil

1шт.

6

1269518C1

HUB CAP

HUB - bearing holder

1шт.

7

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

8

1273175C91

TAPERED BEARING

ASSEMBLY - taper roller

1шт.

9

1269519C1

SHAFT HOUSING

SHAFT - drive

1шт.

10

1273327C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

1шт.

11

933082R1

SNAP RING,M32, Ext

RING - retaining, external, 29 mm ID

1шт.

12

1269500C1

HUB CAP

HUB - bearing

1шт.

13

1273332C91

NEEDLE BEARING

ASSEMBLY - needle

4шт.

14

1282611C1

GEAR WHEEL

GEAR - 24 tooth

1шт.

15

1269517C1

GEAR WHEEL

GEAR - 36 tooth

2шт.

16

1269516C1

GEAR WHEEL

GEAR - 36 tooth

2шт.

17

1282612C1

GEAR WHEEL

GEAR - 26 tooth

1шт.

18

1269503C1

COUPLING

- shafts

1шт.

19

1269498C1

SPACER

- transmission

1шт.

20

1282613C1

GEAR WHEEL

GEAR - 30 tooth

1шт.

21

1282614C1

GEAR WHEEL

GEAR - 30 tooth

1шт.

22

1269506C1

HUB CAP

HUB - bearing

1шт.

23

1282622C1

SHAFT HOUSING

COUNTERSHAFT - transmission

1шт.

24

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

4шт.

25

1271853C91

BEARING, BALL,35mm ID x 62mm OD x 14mm W

BEARING ASSEMBLY - ball

1шт.

26

1269508C1

PLUG

- rubber

1шт.

27

1273574C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

28

1269507C1

GEAR WHEEL

GEAR - 31 tooth

1шт.

29

1269509C1

GEAR WHEEL

GEAR - 27 tooth

1шт.

30

1269499C2

SPACER

- range shaft

1шт.

31

1269510C1

GEAR WHEEL

GEAR - 20 tooth

1шт.

33

1269514C1

SHAFT HOUSING

SHAFT - range

1шт.

34

1273573C91

BALL BEARING

BEARING ASSEMBLY - ball

1шт.

35

933029R1

SNAP RING,M35, Ext

RING - retaining, external, 32 mm

2шт.

36

1269511C1

PLUG

- rubber

1шт.

37

1273568C1

SHIM

WASHER - thrust

2шт.

38

1269512C1

AXLE PIN

SHAFT - transmission

1шт.

39

1273326C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

2шт.

40

1269513C1

GEAR WHEEL

GEAR - 15 and 17 tooth

1шт.

41

591184R1

PIN,3/16" x 1 1/4", Coiled

- slotted spring, 5 x 32 mm

1шт.

42

934001R1

SNAP RING,M18, Ext

RING - retaining, external, 16 mm ID

1шт.

46

1273572C91

BALL BEARING

BEARING ASSEMBLY - ball

1шт.

44

1275227C1

SPACER

- range shaft

1шт.

45

1273576C1

SHIM

KIT - countershaft

1шт.

46

1273577C1

SHIM

WASHER - flat, special, 26 mm ID, 36 mm OD

1шт.
