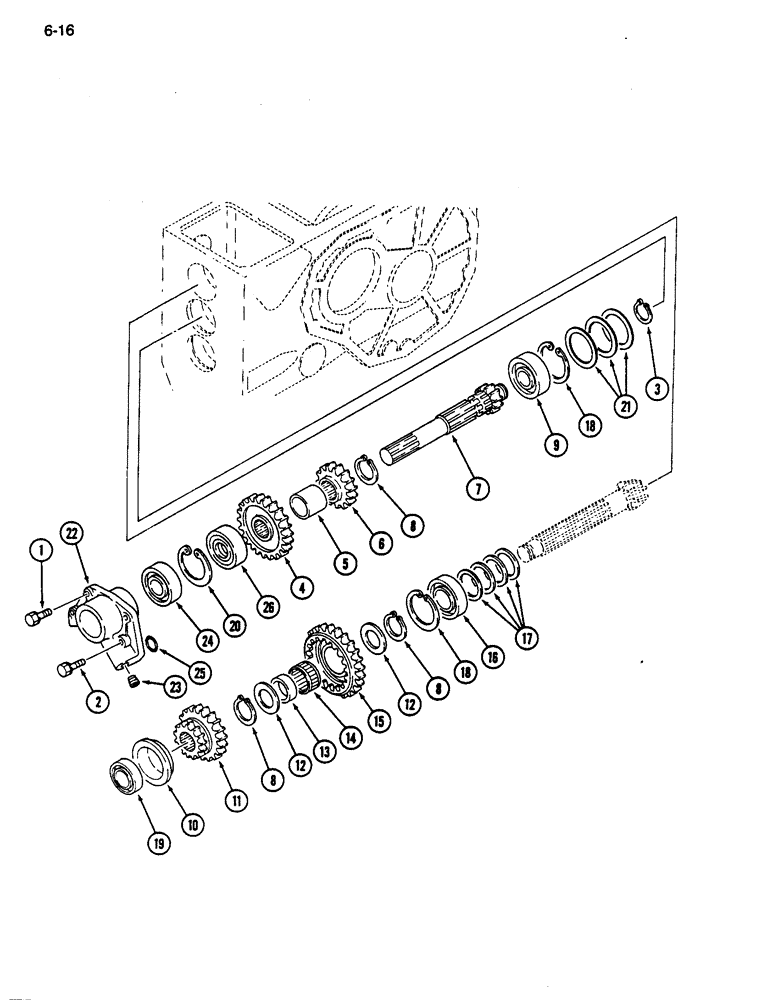

Запчасти Case IH 255 (6-16) - RANGE GEARS, SYNCHROMESH TRANSMISSION (06) - POWER TRAIN

1

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

2

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

3

933128R1

SNAP RING,M25, Ext

RING - retaining, external

1шт.

4

1282602C1

GEAR WHEEL

GEAR - 37 tooth

1шт.

5

1269534C1

SPACER

- gear

1шт.

6

99359C2

GEAR WHEEL

GEAR - 24 tooth

1шт.

7

1282603C1

SHAFT HOUSING

SHAFT - pinion gear, 12 tooth

1шт.

8

933086R1

SNAP RING,M30, Ext

- retaining, external, 28 mm ID

3шт.

9

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - pinion shaft

1шт.

10

1269536C1

NOZZLE HOLDER

HOLDER - bearing

1шт.

11

99361C1

GEAR WHEEL

GEAR - 19 and 32 tooth

1шт.

12

1273133C1

WASHER

- thrust

2шт.

13

1269535C1

SPACER

- inner race

1шт.

14

1273330C91

NEEDLE BEARING

BEARING - needle

1шт.

15

99360C2

GEAR WHEEL

GEAR - 32 and 43 tooth

1шт.

16

1273014C92

TAPERED BEARING

BEARING ASSEMBLY - pinion shaft

1шт.

17

1273012C1

STRIPPER PACKAGE

SHIM KIT - drive pinion

1шт.

18

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

1шт.

19

1273015C91

TAPERED BEARING

ASSEMBLY - roller, taper

1шт.

20

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

1шт.

21

1273013C2

STRIPPER PACKAGE

SHIM KIT - range shaft

1шт.

22

1282605C2

NOZZLE HOLDER

HOLDER - bearing

1шт.

23

444688

PLUG

- hex socket, 1/8-27 PT

2шт.

24

1282606C91

BALL BEARING

ASSEMBLY - ball, pinion shaft

1шт.

25

1282607C1

O-RING

O-RING -8 mm ID

2шт.

26

1282609C1

OIL SEAL

SEAL - oil

1шт.
