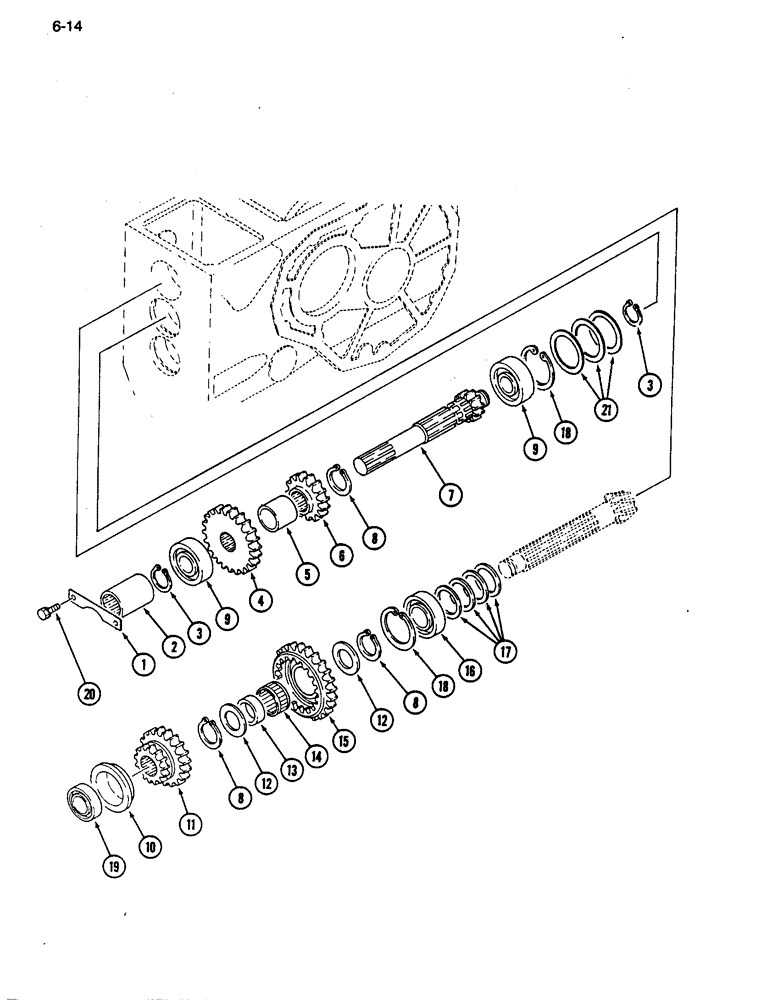

Запчасти Case IH 255 (6-14) - RANGE GEARS, CONSTANT MESH TRANSMISSION (06) - POWER TRAIN

1

1269529C1

SUPPORT ASSY.

STRAP - locking

1шт.

2

1269531C1

COUPLING

- pinion shaft

1шт.

3

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

2шт.

4

1269530C1

GEAR WHEEL

GEAR - 37 tooth

1шт.

5

1269534C1

SPACER

- gear

1шт.

6

99359C2

GEAR WHEEL

GEAR - 24 tooth

1шт.

7

1269537C2

SHAFT HOUSING

SHAFT - pinion gear

1шт.

8

933086R1

SNAP RING,M30, Ext

- retaining, external, 28 mm ID

3шт.

9

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - pinion shaft

2шт.

10

1269536C1

NOZZLE HOLDER

HOLDER - bearing

1шт.

11

99361C1

GEAR WHEEL

GEAR - 19 and 32 tooth

1шт.

12

1273138C1

STRAINER ELEMENT

WASHER - thrust

2шт.

13

1269535C1

SPACER

- inner race

1шт.

14

1273330C91

NEEDLE BEARING

BEARING - needle

1шт.

15

99360C2

GEAR WHEEL

GEAR - 32 and 43 tooth

1шт.

16

1273014C92

TAPERED BEARING

BEARING ASSEMBLY - pinion shaft

1шт.

17

1273012C1

STRIPPER PACKAGE

SHIM KIT - pinion shaft

1шт.

18

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

2шт.

19

1273015C91

TAPERED BEARING

ASSEMBLY - roller, taper

1шт.

20

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

21

1273013C2

STRIPPER PACKAGE

SHIM KIT - range shaft

1шт.
