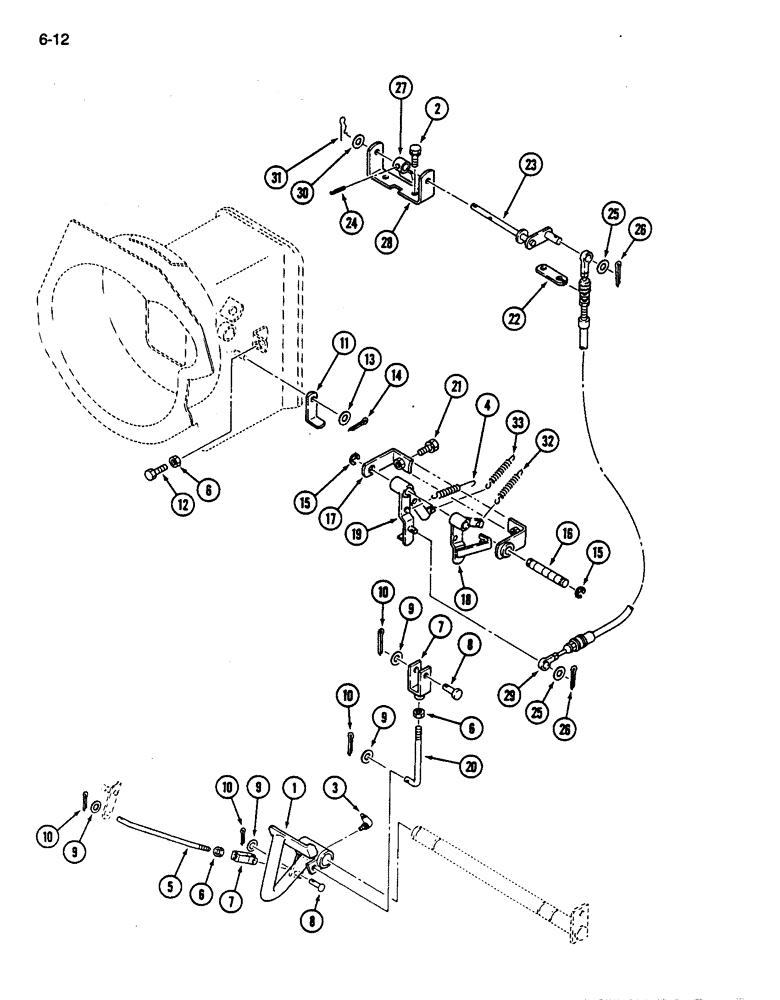

Запчасти Case IH 255 (6-12) - INCHING PEDAL, SYNCHROMESH TRANSMISSION (06) - POWER TRAIN

1

1288343C1

PEDAL

Inching

1шт.

2

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

2шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

1шт.

4

1282695C1

VALVE SPRING

Arm

1шт.

5

1275278C1

ROD

Linkage

1шт.

6

825-1108

NUT,Hex, M8, Cl 8

hex, M8, Grade 10

3шт.

7

1275424C1

YOKE

UNIVERSAL JOINT YOKE Linkage

2шт.

8

30569R1

CLEVIS PIN,M8 x 25

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Flat, 9 x 17 x 2 mm

4шт.

10

732-2020

COTTER PIN,M2 x 20

(Replaces 632-580)

4шт.

11

1275132C1

SUPPORT ASSY.

BRACKET

1шт.

12

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Flat, 9 x 17 x 2 mm

1шт.

14

732-2016

COTTER PIN,M2 x 16

(Replaces 632-578)

1шт.

15

1271818C1

CIRCLIP,M13

RING - retaining

2шт.

16

1282696C1

SHAFT HOUSING

Pivot

1шт.

17

1282697C1

BRACKET

Link

1шт.

18

1282698C1

ARM

Pivot shaft

1шт.

19

1288344C1

ARM

Cable attaching

1шт.

20

1282700C1

ROD

Linkage

1шт.

21

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Flat, 9 x 17 x 2 mm

2шт.

22

1282701C1

PLATE ASSY.

SUPPORT - cable

1шт.

23

1282702C1

ARM

Cable

1шт.

24

30323R1

LOCK PIN,M5 x 26, Slotted

Spring

1шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

26

432-612

COTTER PIN,3/32" x 3/4"

(3 x 20 mm) (Replaces 632-604)

2шт.

27

1282703C1

ARM

Push

1шт.

28

1282704C1

BRACKET

Mounting

1шт.

29

1282705C1

CABLE PULLING GRIP

Control

1шт.

30

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

31

1282706C1

AXLE PIN

Hair

1шт.

32

1269808C1

VALVE SPRING

Arm

1шт.

38

1288345C1

VALVE SPRING

Arm

1шт.
