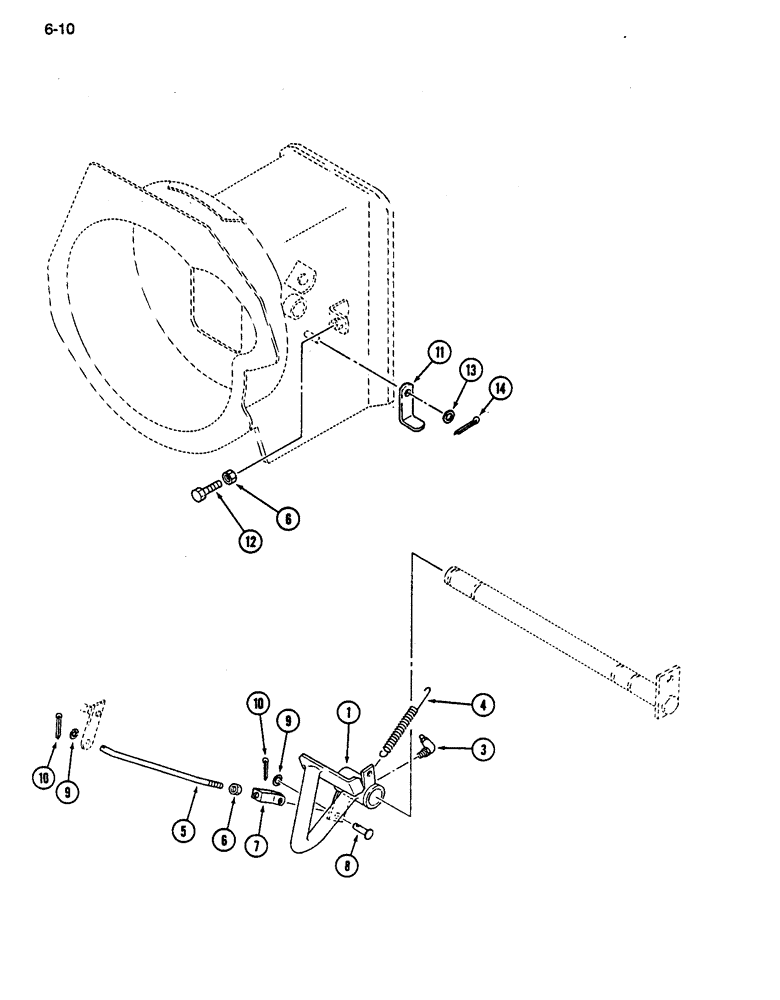

Запчасти Case IH 255 (6-10) - INCHING PEDAL, CONSTANT MESH TRANSMISSION (06) - POWER TRAIN

1

1275129C1

PEDAL

Inching

1шт.

3

109400

STEERING KNUCKLE

FITTING - grease, 65 degree, 1/8 inch PT

1шт.

4

1269808C1

VALVE SPRING

Inching pedal

1шт.

5

1275278C1

ROD

Linkage

1шт.

6

825-1108

NUT,Hex, M8, Cl 8

hex, M8, Grade 10

2шт.

7

1275424C1

YOKE

UNIVERSAL JOINT YOKE Linkage

1шт.

8

30569R1

CLEVIS PIN,M8 x 25

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 2 mm

2шт.

10

732-2020

COTTER PIN,M2 x 20

(Replaces 632-580)

2шт.

11

1275132C1

SUPPORT ASSY.

BRACKET

1шт.

12

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

WASHER - flat, 9 x 17 x 2 mm

1шт.

14

732-2016

COTTER PIN,M2 x 16

(Replaces 632-578)

1шт.
