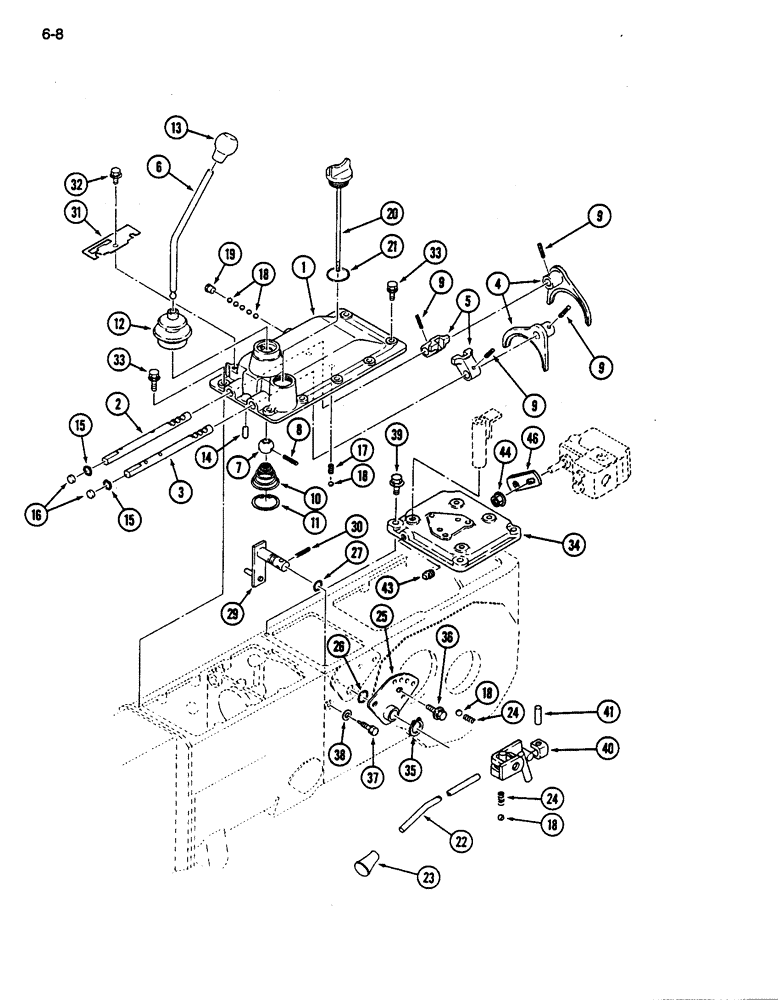

Запчасти Case IH 255 (6-08) - GEAR SHIFT LINKAGE AND MECHANISM, RANGE SHIFT LINKAGE, SYNCHROMESH TRANSMISSION (06) - POWER TRAIN

1

1273472C1

COVER ASSY

COVER - transmission

1шт.

2

1273473C1

SHAFT HOUSING

RAIL - shift, first gear and reverse

1шт.

3

1273474C1

SHAFT HOUSING

RAIL - shift, second and third gear

1шт.

4

1273475C1

FORK TEDDER

FORK - shift

2шт.

5

1273476C1

ADAPTER

- shift rail

2шт.

6

1273477C1

HANDLE

LEVER - gear shift

1шт.

7

1273478C1

BALL

- shift lever

1шт.

8

591184R1

PIN,3/16" x 1 1/4", Coiled

- slotted spring, 5 x 32 mm

1шт.

9

31121R1

LOCK PIN,M6 x 26, Slotted

PIN - slotted spring, 6 x 26 mm

4шт.

10

1273479C1

VALVE SPRING

SPRING - shift lever

1шт.

11

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

1шт.

12

1273480C1

INSULATOR

COVER - gear shift lever

1шт.

13

1273483C1

KNOB

- shift lever

1шт.

14

30346R1

DOWEL,M10 x 20

PIN - dowel, hardened, 10 OD x 20 mm

2шт.

15

3053126R1

SNAP RING,M16, Int

RING - retaining, internal, 17 mm OD

2шт.

16

1273481C1

PLUG

- shift rail

2шт.

17

1273482C1

VALVE SPRING

SPRING - shift cover

2шт.

18

17011R1

BALL

- 11/32 inch diameter

9шт.

19

1273484C1

PLUG

- transmission cover

1шт.

20

1961811C2

GAUGE ASSY.

DIPSTICK - fluid level

1шт.

21

1269877C1

O-RING

- dipstick

1шт.

22

99247C1

LEVER

- range shift linkage

1шт.

23

1273497C1

KNOB

- range shift lever

1шт.

24

1273456C1

VALVE SPRING

SPRING - shift fork (Replaces 1962640C1)

2шт.

25

1273487C2

PLATE ASSY.

PLATE - guide

1шт.

26

1269876C1

O-RING

O-RING - 26 mm ID

1шт.

27

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

29

99246C1

LEVER

- range shift

1шт.

30

30320R1

PIN,M5 x 33, Coiled

- coiled spring, 5 x 32 mm

1шт.

31

1273489C1

SUPPORT ASSY.

PLATE - gear shift lever

1шт.

32

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

33

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

10шт.

892-11010

LOCK WASHER,M10

14шт.

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

10шт.

34

1282692C1

COVER ASSY

COVER - differential housing

1шт.

35

938105R1

SHIELD

RING - retaining, external, 20 mm ID

1шт.

36

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

37

1269762C1

BOLT,Hex, M10 x 1.25 x 20mm

BOLT - hex, 20 mm long

1шт.

38

1273491C1

SEALING WASHER

SEAL - washer

1шт.

39

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

4шт.

40

1282578C1

HANDLE

LEVER ASSEMBLY - range shift

1шт.

41

31163R1

PIN,M5 x 40, Coiled

- coiled spring, heavy, 5 x 40 mm

1шт.

43

444688

PLUG

- hex socket, 1/8-27 automotive pipe

1шт.

44

825-1108

NUT,Hex, M8, Cl 8

- hex flange lock, M8, Grade 10

1шт.

46

1282693C1

PLATE ASSY.

BRACKET - support (Prior to transmission S/N 17637822)

1шт.
