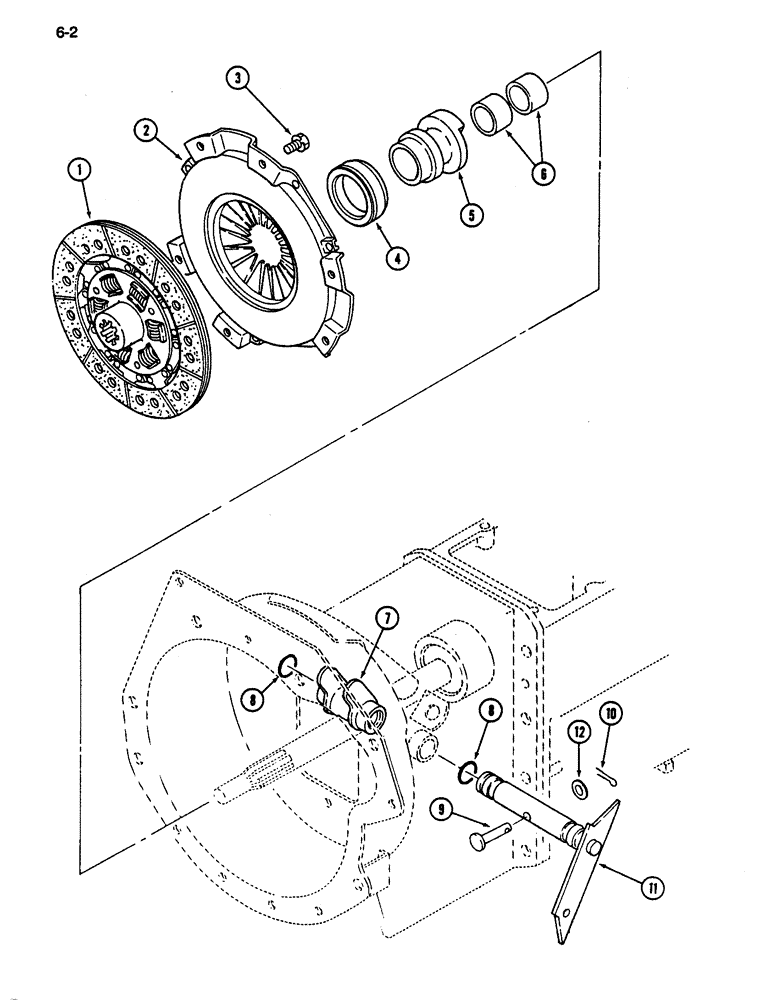

Запчасти Case IH 255 (6-02) - ENGINE CLUTCH (06) - POWER TRAIN

1

1273253C1

CLUTCH ASSEMBLY

- disc

1шт.

1

1346877C1R

REMAN-CLUTCH DISC

1шт.

1

1346877C1C

CORE-CLUTCH DISC

Return Number

1шт.

2

1273254C1

COVER ASSY

COVER ASSEMBLY - clutch

1шт.

1273254C1R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE, N.A. Only

1шт.

2

1273254C1C

CORE-CLUTCH PLATE

Return Number, Cover Assembly, Clutch, N.A. Only

1шт.

3

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

4

1273237C91

BEARING,40mm ID x 70mm OD x 20mm W

ASSEMBLY - clutch release

1шт.

5

1273255C3

HUB CAP

HUB - bearing release

1шт.

6

1962547C1

BUSHING

- mainshaft

2шт.

7

1273256C1

CLUTCH FORK

FORK - clutch release

1шт.

8

1269891C1

O-RING

O-RING - release shaft

2шт.

9

1963627C1

AXLE PIN

PIN - clevis (Replaces 1273249C1)

1шт.

10

932951R1

COTTER PIN,M1.6 x 12

PIN - cotter, 2 x 12 mm (replaces 632-532)

1шт.

11

1273257C1

SHAFT HOUSING

SHAFT - clutch release

1шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.
