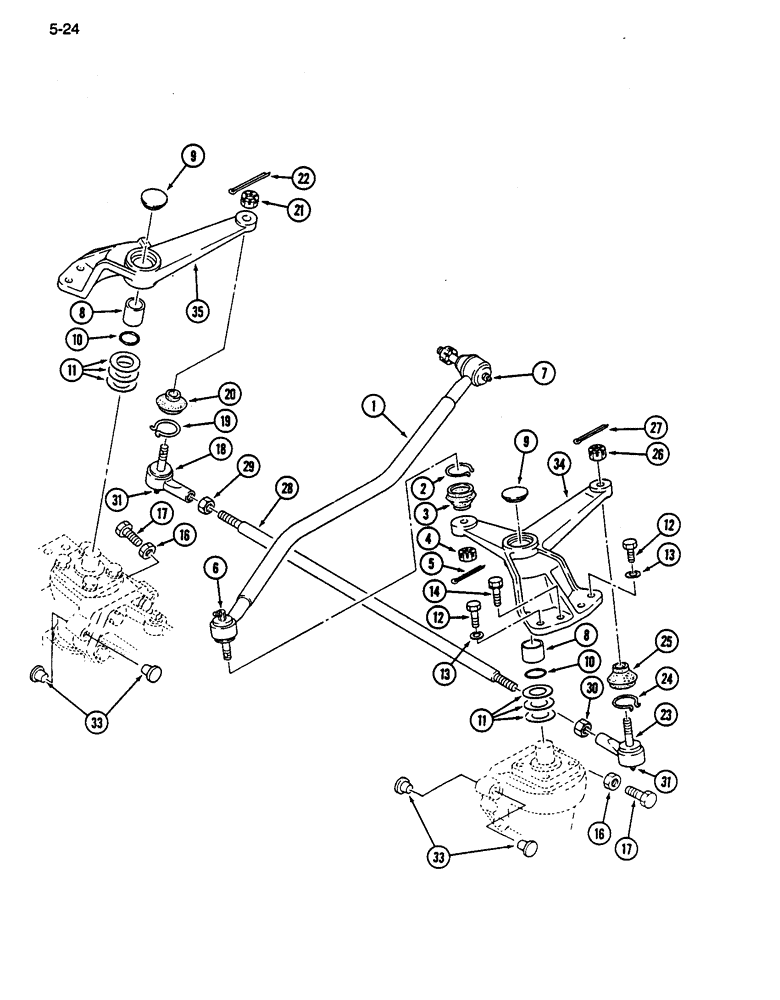

Запчасти Case IH 255 (5-24) - TIE ROD AND STEERING LINKAGE, MFD TRACTOR (05) - STEERING

1

99391C1

DRAG LINK

ROD ASSEMBLY - drag link, Includes: Ref. 2 - 7

1шт.

2

1273528C1

RING

- retaining

2шт.

3

1273527C1

COVER ASSY

COVER - dust

2шт.

4

1271875C1

NUT

- castle, M10

2шт.

5

732-3225

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm (replaces 632-630)

2шт.

6

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

FITTING - grease, extra short, 65 degree 1/4-18 PT

1шт.

7

1273649C1

FITTING

- grease, M6

1шт.

8

1273226C1

BUSHING

- steering arm

2шт.

9

172570

PLUG,Exp, 1 3/8"

- steering arm

2шт.

10

1269874C1

O-RING

O-RING -24 mm ID

2шт.

11

1273560C1

SHIM

KIT - steering arm

1шт.

12

1273558C1

BOLT,Hex, M12 x 1.25 x 35mm

BOLT - shoulder

4шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

14

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

16

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

2шт.

17

514-718

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

- hex, M10 x 1.25 x 40 mm

2шт.

17

514-720

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8, Full Thd

(Left wheel only, 27 x 8.50 - 15 tire) Hex, M10 x 1.25 x 50, 8.8, Full Thd

1шт.

18

1273539C91

END ASSY.

ROD END ASSEMBLY - tie, right, Includes: Ref. 19 - 22 and 31

1шт.

19

1273528C1

RING

- retaining

1шт.

20

1273527C1

COVER ASSY

COVER - dust

1шт.

21

1271875C1

NUT

- castle, M10

1шт.

22

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

23

1273540C91

END ASSY.

ROD END ASSEMBLY - tie, left, Includes: Ref. 24 - 27 and 31

1шт.

24

1275164C1

RING

- retaining (Replaces 1273528C1)

1шт.

25

1273527C1

COVER ASSY

COVER - dust

1шт.

26

1271875C1

NUT

- castle, M10

1шт.

27

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

28

1273559C1

TURNBUCKLE

TIE ROD - turnbuckle

1шт.

29

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12

1шт.

30

1269785C1

NUT

- hex, M12, left hand thread

1шт.

31

1273649C1

FITTING

- grease, M6

2шт.

33

NSS

NOT SOLD SEPARAT

PLUG

4шт.

34

99229C1

ARM

- knuckle

1шт.

35

1273555C2

ARM

- tie rod

1шт.

1963130C1

DAMPER

KIT MFD power steering, SB 005 88

1шт.
