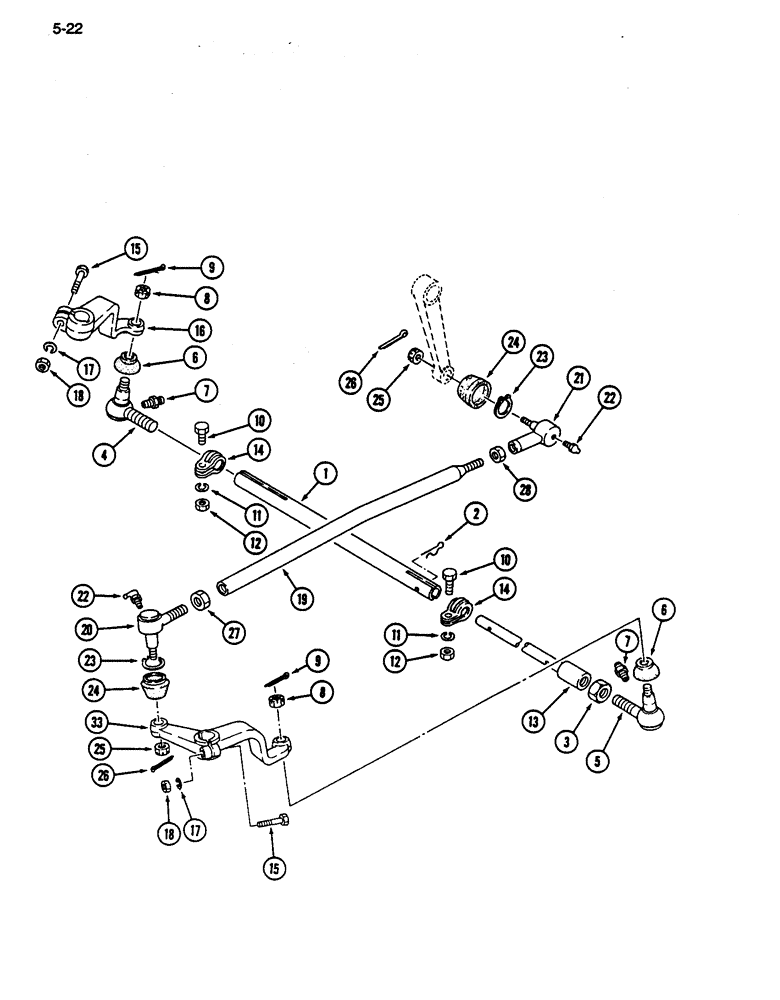

Запчасти Case IH 255 (5-22) - TIE ROD AND STEERING LINKAGE, ADJUSTABLE AXLE (05) - STEERING

1

1273646C1

SHAFT HOUSING

ROD - tie, outer

1шт.

2

1273647C1

AXLE PIN

PIN - hair

1шт.

3

1273545C1

NUT

- hex, M17 x 1.5 mm, left hand thread

1шт.

4

1273546C91

END ASSY.

ROD END ASSEMBLY - tie, right, Includes: Ref. 6 - 9

1шт.

5

1273547C91

END ASSY.

ROD END ASSEMBLY - tie, left, Includes: Ref. 6 - 9

1шт.

6

1273548C1

COVER ASSY

COVER - dust

2шт.

7

1273649C1

FITTING

- grease, extra short, straight, 1/4-18 PT

2шт.

8

1273549C1

NUT

- castle, M12

2шт.

9

732-3225

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm

2шт.

10

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, CL 8.8, M8 x 1.25 x 30

2шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

12

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

2шт.

13

1273653C1

ROD

- tie, inner

1шт.

14

1273654C1

CLAMP

- tie rod

2шт.

15

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

- hex, M10 x 60 mm, Grade 10.9

2шт.

16

1273551C1

ARM

- steering, right (Replaces 1275143C1)

1шт.

17

892-11010

LOCK WASHER,M10

2шт.

18

30168R1

NUT,M10, Cl 10

- hex, M10, Grade 10

2шт.

19

99390C1

LINK

- drag

1шт.

20

1962618C1

ROD

END ASSEMBLY - left, Includes: Ref. 22 - 26

1шт.

21

1962619C1

ROD

END ASSEMBLY - right, Includes: Ref. 22 - 26

1шт.

22

1273649C1

FITTING

- grease, extra short, straight, 1/4-18 PT

2шт.

23

1275164C1

RING

- retaining

2шт.

24

1275165C1

COVER ASSY

COVER - dust

2шт.

25

1275160C1

NUT

- hex slotted, M12 x 1.25 (Replaces 1269784C1)

2шт.

26

732-3225

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm

2шт.

27

1962622C1

NUT

- hex, M18, left hand thread

1шт.

28

1962621C1

NUT

- hex, M18

1шт.

33

99227C1

KNUCKLE JOINT

ARM - steering, left

1шт.
