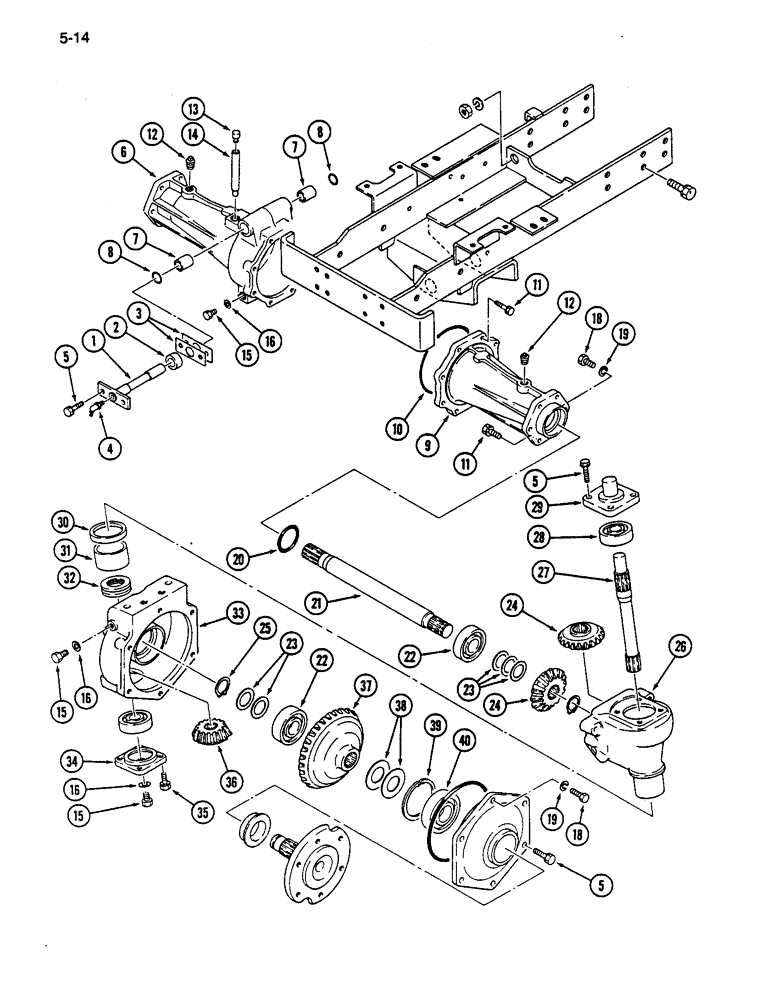

Запчасти Case IH 255 (5-14) - FRONT AXLE HOUSING, AXLE SHAFT AND GEARS, MFD TRACTOR (05) - STEERING

1

99096C1

SHAFT HOUSING

SHAFT - axle pivot

1шт.

2

1273223C2

SPACER

- pivot shaft

1шт.

3

1273282C1

SHIM

KIT - pivot shaft

1шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, short, 65 degree, 1/8-27 PT

1шт.

5

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

18шт.

892-11010

LOCK WASHER,M10

18шт.

6

1273219C91

CENTER AXLE

HOUSING ASSEMBLY - front axle, right

1шт.

7

1269752C1

BUSHING

- axle pivot

2шт.

8

1282979C1

O-RING

O-RING - 25 mm ID (Replaces 1269875C1)

2шт.

9

1273222C1

HOUSING

- front axle, left

1шт.

10

1269889C1

O-RING

O-RING - 150 mm ID

1шт.

11

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

20шт.

892-11010

LOCK WASHER,M10

20шт.

12

444699

PLUG,Hex Soc, 3/8"-18

- drain, hex socket head, 3/8-18 PT

2шт.

13

1273287C1

PLUG

- vent

1шт.

14

1273288C1

VENTILATION PIPE,13 mm Diameter, 110 mm Length

TUBE - vent plug

1шт.

15

1269630C1

BOLT,M8 x 1.25 x 12mm

PLUG - drain

5шт.

16

1275284C1

SEALING WASHER

GASKET - drain plug

5шт.

18

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT - shoulder

4шт.

19

892-11010

LOCK WASHER,M10

4шт.

20

1269887C1

O-RING

O-RING - 75 mm ID

2шт.

21

1273218C2

SHAFT HOUSING

SHAFT - axle

2шт.

22

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

4шт.

23

1273217C1

SHIM

KIT - axle shaft

1шт.

24

1288023C1

GEAR WHEEL

GEAR - pinion, 15 tooth

4шт.

25

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

2шт.

26

1273215C1

CASE

HOUSING - king pin

2шт.

27

1273214C2

SHAFT HOUSING

SHAFT - king pin

2шт.

28

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

29

1273213C1

NOZZLE HOLDER

HOLDER - bearing, upper

2шт.

30

1273212C1

OIL SEAL

SEAL - oil

2шт.

31

1273227C1

SPACER

BUSHING - housing

2шт.

32

1271869C91

THRUST BEARING

ASSEMBLY - thrust, ball

2шт.

33

1273209C91

CASE

HOUSING ASSEMBLY - final drive, Includes: Ref. 31

2шт.

34

1273161C1

COVER ASSY

COVER - housing, lower

2шт.

35

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

36

1273207C1

GEAR WHEEL

GEAR - pinion, 12 tooth

2шт.

37

1273208C1

GEAR WHEEL

GEAR - bevel, 32 tooth

2шт.

38

1273206C1

SHIM

KIT - bevel gear

1шт.

39

933076R1

SNAP RING,M72, Int

RING - retaining, internal, 76 mm OD

2шт.

40

1271866C91

BALL BEARING

ASSEMBLY - ball

2шт.
