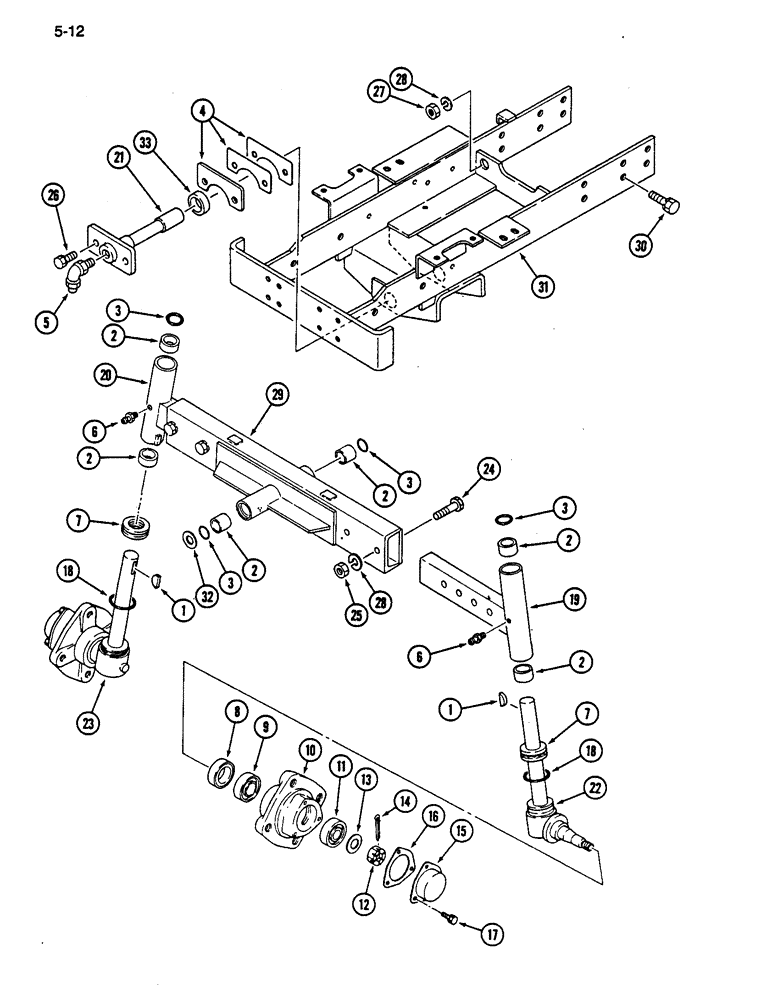

Запчасти Case IH 255 (5-12) - FRONT AXLE, ADJUSTABLE (05) - STEERING

1

1271897C1

KEY

- Woodruff

2шт.

2

1269752C1

BUSHING

- spindle

6шт.

3

1282979C1

O-RING

O-RING - 25 mm ID (Replaces 1269875C1)

4шт.

4

1273282C1

SHIM

KIT - axle pivot

1шт.

5

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, short, 65 degree, 1/8-27 PT

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8-27 PT

2шт.

7

1271899C91

BEARING, BALL,26 mm ID x 43.5 mm OD x 15.25 mm

BEARING ASSEMBLY - thrust, ball

2шт.

8

1271890C1

OIL SEAL

SEAL - oil

2шт.

9

1271857C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

10

1962613C1

HUB CAP

HUB - wheel, front

2шт.

11

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

12

1271877C1

NUT

- castle, M16

2шт.

13

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

2шт.

14

632-657

COTTER PIN,M4 x 40

PIN - cotter, 4 x 40 mm

2шт.

15

1269749C1

CYLINDER END CAP

CAP - hub

2шт.

16

1271891C1

GASKET

- hub cap

2шт.

17

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

6шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

18

1269880C1

O-RING

O-RING - 38 mm ID

2шт.

19

1273661C2

CENTER AXLE

AXLE ASSEMBLY - left end section (Manual steering) (Includes 2 of Ref. 2)

1шт.

19

1282823C91

CENTER AXLE

AXLE ASSEMBLY - left end section (Power steering) (Includes 2 of Ref. 2)

1шт.

20

1273662C2

CENTER AXLE

AXLE ASSEMBLY - right end section (Manual steering) (Includes 2 of Ref. 2)

1шт.

20

1282824C91

CENTER AXLE

AXLE ASSEMBLY - right end section (Power steering) (Includes 2 of Ref. 2)

1шт.

21

99096C1

SHAFT HOUSING

SHAFT - axle pivot (Replaces 1962605C1)

1шт.

22

1273655C2

KNUCKLE

SPINDLE - axle, left

1шт.

23

1273656C2

KNUCKLE

SPINDLE - axle, right

1шт.

24

828-14070

BOLT,Hex, M14 x 2 x 70mm, Cl 10.9

Hex, M14 x 70, 10.9

4шт.

25

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

4шт.

26

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

2шт.

892-11010

LOCK WASHER,M10

2шт.

27

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

2шт.

28

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

6шт.

29

1962611C1

CENTER AXLE

AXLE ASSEMBLY - center section (Includes 2 of Ref. 2)

1шт.

30

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M12 x 30 mm

12шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

31

99226C2

FUNNEL

FRAME - front

1шт.

32

1962606C1

WASHER

- special

1шт.

33

1962607C1

COLLAR CLAMP

COLLAR - axle pivot

1шт.
