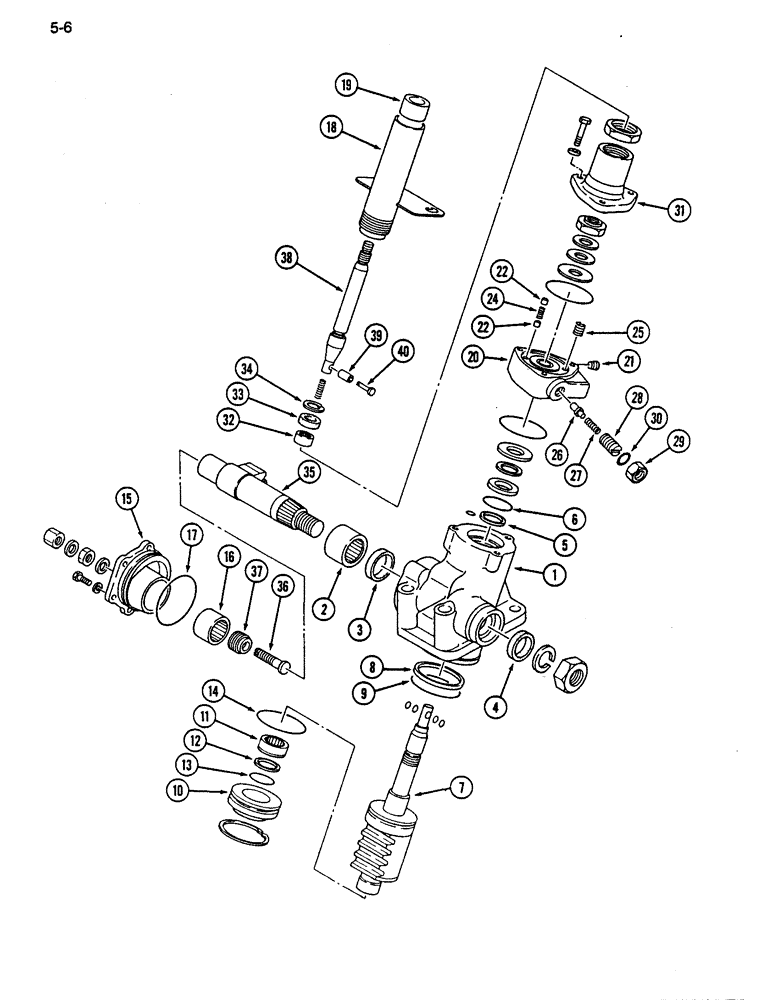

Запчасти Case IH 255 (5-06) - GEAR BOX ASSEMBLY, POWER STEERING (05) - STEERING

1275145C92

BOX

GEAR BOX ASSEMBLY - steering, Includes: Ref. 1 - 40 and 41 - 61 on Figure 5-08

1шт.

1

1275430C91

HOUSING

ASSEMBLY - gear box, Includes: Ref. 2 - 6

1шт.

2

1275364C91

NEEDLE BEARING

BEARING - steering shaft

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - packing

1шт.

Part of Seal Kit, P/N 1275450C2

1шт.

4

1275366C1

OIL SEAL

SEAL - oil

1шт.

5

NSS

NOT SOLD SEPARAT

RING - steering gear

1шт.

Part of Seal Kit, P/N 1275450C2

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - steering gear

1шт.

Part of Seal Kit, P/N 1275450C2

1шт.

7

1275449C1

STRIPPER PACKAGE

GEAR KIT - service, Includes: Ref. 35, 36 and 37

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - steering gear

1шт.

Part of Seal Kit, P/N 1275450C2

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - steering gear

1шт.

Part of Seal Kit, P/N 1275450C2

1шт.

10

1275432C91

COVER ASSY

COVER ASSEMBLY - front, Includes: Ref. 11 - 14

1шт.

11

1275382C1

NEEDLE BEARING

- cover

1шт.

12

NSS

NOT SOLD SEPARAT

RING - cover

1шт.

Part of Seal Kit, P/N 1275450C2

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - cover

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - cover

1шт.

Part of Seal Kit, P/N 1275450C2

1шт.

15

1275433C91

COVER ASSY

COVER ASSEMBLY - steering shaft (Replaces: 1275384C1)

1шт.

16

1275385C1

NEEDLE BEARING

- steering shaft

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - side cover

1шт.

Part of Seal Kit, P/N 1275450C2

1шт.

18

1275386C1

SHAFT HOUSING

SHAFT - column

1шт.

19

1275387C1

BUSHING

- shaft

1шт.

20

1275452C92

HOUSING

ASSEMBLY - valve

1шт.

21

444689

PLUG,Hex Soc, 1/8"-27, Brass

- hex socket head, 1/8 - 27 PT (Replaces 1275396C1)

2шт.

22

1275388C1

PISTON ASSY.

PISTON - valve housing

4шт.

24

1275390C1

VALVE SPRING

SPRING - piston

2шт.

25

1282964C1

VALVE SPRING

SPRING - valve housing

2шт.

26

1282965C1

LOCK VALVE

VALVE - poppet

1шт.

27

1275394C1

VALVE SPRING

SPRING - poppet valve

1шт.

28

1282966C1

SCREW,M22 x 1.5 x 19mm

- poppet valve

1шт.

29

1282967C1

NUT,M22 x 1.5 x 30mm

- poppet screw

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - poppet valve

1шт.

Part of Seal Kit, P/N 1275450C2

1шт.

31

1275434C91

COVER ASSY

COVER ASSEMBLY - rear, Includes: Ref. 32 - 34

1шт.

32

1275398C1

NEEDLE BEARING

- rear cover

1шт.

33

1275399C1

OIL SEAL

SEAL - oil

1шт.

34

933110R1

SNAP RING,M32, Int

RING - retaining

1шт.

35

1275405C1

SHAFT HOUSING

SHAFT ASSEMBLY - steering

1шт.

36

1275403C1

SCREW - adjuster

1шт.

37

1275404C1

ADJUSTER

- steering

1шт.

38

1275405C1

SHAFT HOUSING

SHAFT ASSEMBLY - steering

1шт.

39

31258R1

LOCK PIN,M5 x 18, Slotted

PIN - spring, 5 x 18 mm

1шт.

40

1275407C1

RIVET

- steering shaft

1шт.

1275450C2

STRIPPER PACKAGE

KIT - seal, Includes: Ref. 3, 5, 6, 8, 9, 12, 14, 17 and 30 on Figure 5-06 and 5-08

1шт.
