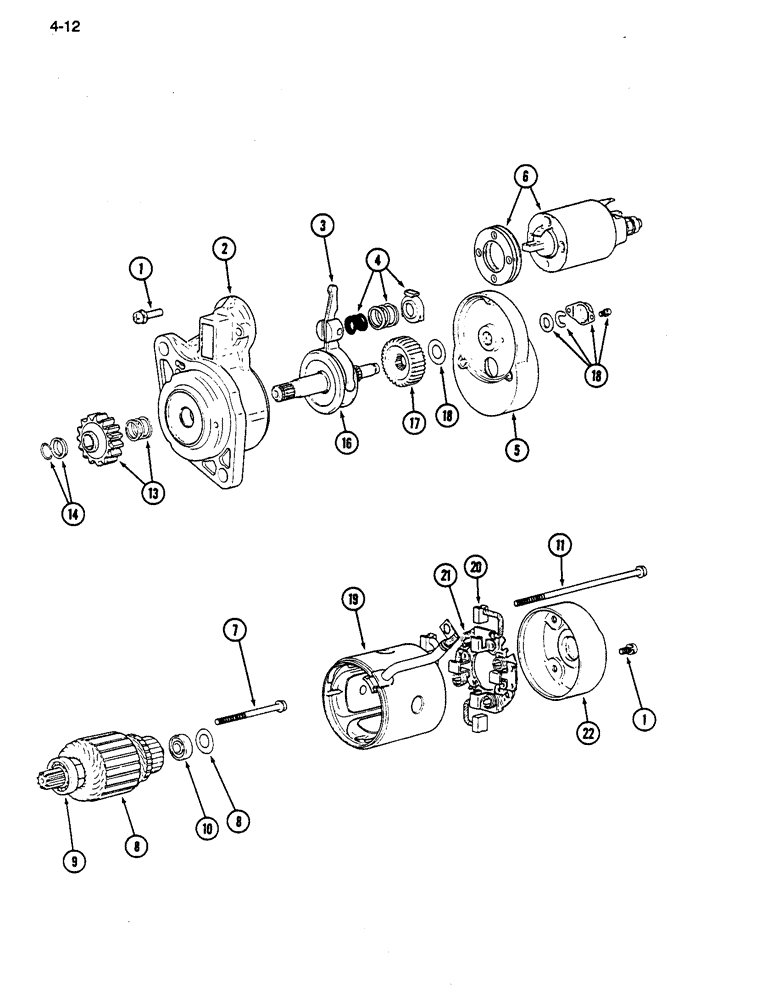

Запчасти Case IH 255 (4-12) - STARTER (04) - ELECTRICAL SYSTEMS

1273112C91

STARTING MOTOR

STARTER ASSEMBLY - engine, Includes: Ref. 1 - 22

1шт.

1273112C91R

REMAN-STARTER

Remanufactured STARTER 12 volt, 1.4KW - For N.A. Only

1шт.

1273112C91C

CORE-STARTER

Return Number, STARTER 12 volt, 1.4KW - For N.A. Only

1шт.

1

1962938C1

SCREW

HARDWARE SET - starter

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - front (Order 1273112C91)

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER ASSEMBLY - starter drive (Order 1273112C91)

1шт.

4

1962939C1

VALVE SPRING

SPRING SET - starter drive

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - center (Order 1273112C91)

1шт.

6

1962940C1

ASSEMBLY

SWITCH ASSEMBLY - magnetic, Includes: switch assembly and bolt

1шт.

1273122C1

SWITCH

SWITCH ASSEMBLY - magnetic

1шт.

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - hex, M12 x 30 mm

2шт.

7

1962971C1

BOLT (SPREADER),M5 x 73mm

BOLT - hex, M5 x 73 mm

1шт.

8

1962941C1

ARMATURE

ARMATURE ASSEMBLY - starter, Includes: Ref. 9 - 22 and bearing kit

1шт.

1273123C91

KIT

BEARING KIT - armature

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - armature (Order 1273123C91)

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING - armature (Order 1273123C91)

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT - hex, M5 x 149 mm (Order 1273112C91)

2шт.

1962942C1

CLUTCH ASSEMBLY

SHAFT ASSEMBLY - clutch

1шт.

13

1962943C1

PINION

GEAR - drive

1шт.

14

1962944C1

STOP

STOP ASSEMBLY - drive gear

1шт.

1962945C1

GEAR WHEEL

GEAR SET - clutch, Includes: Ref. 16 & 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - clutch (Order 1273112C91)

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - drive (Order 1273112C91)

1шт.

18

1962946C1

COVER ASSY

HARDWARE SET - housing

1шт.

19

NSS

NOT SOLD SEPARAT

YOKE ASSEMBLY - field coil (Order 1273112C91)

1шт.

1273124C91

KIT

BRUSH KIT - starter

1шт.

20

NSS

NOT SOLD SEPARAT

HOLDER ASSEMBLY - brush (Order 1273124C91)

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - brush (Order 1273124C91)

4шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - rear (Order 1273112C91)

1шт.
