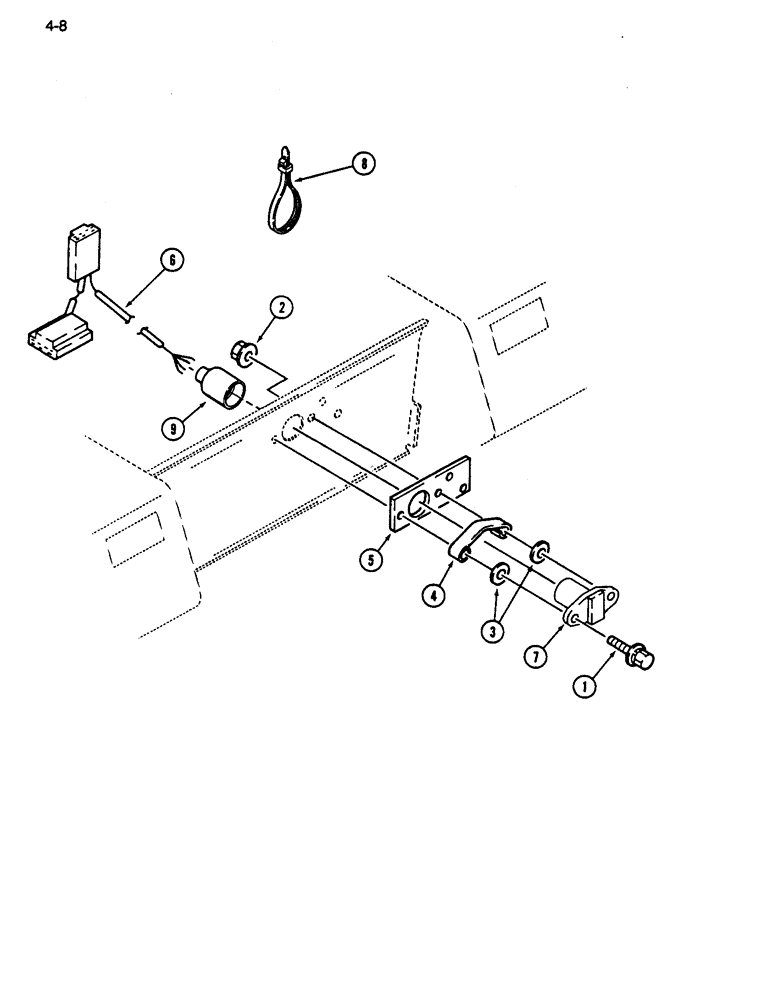

Запчасти Case IH 255 (4-08) - AUXILIARY ELECTRIC OUTLET KIT (04) - ELECTRICAL SYSTEMS

1

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, M8 x 45 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

2

825-1108

NUT,Hex, M8, Cl 8

- flange lock, M8, Grade 10

2шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

4

1273720C1

BRACKET

- mounting

1шт.

5

1273749C1

BAR

TEMPLATE - connector

1шт.

6

1273750C1

HARNESS

- connector

1шт.

7

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR ASSEMBLY - 7 point auxiliary outlet

1шт.

8

869707C1

STRAP,368.3mm L

- tie

3шт.

9

481849C1

PROTECTIVE COVER

BOOT - wiring harness

2шт.
